Open CNC Basic Operation Package 2 Operators manual Page 266

Operators manual
3.CUSTOMIZATION B-63924EN/01
- 246 -
3.5.4 Display Definition Part
For a certain screen, the display definition part can contain more than
one page. Each of the pages can be selected, using the PGUP,
PGDN, and PGSEL commands assigned to soft keys. This definition
contains a label, an icon, and a sequence of data. The data sequence
can consist of two or more pieces of data.

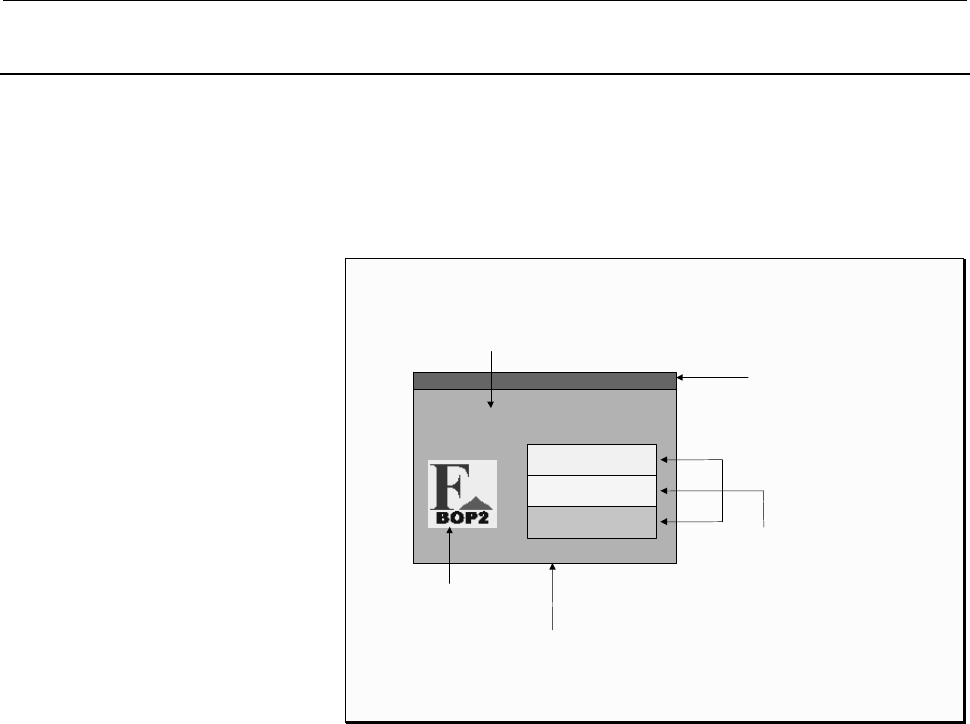

Details of child screen customization
custom
Label
Icon
Title ba
r
CNC data
An arbitrary number of labels, icons, and
CNC data items can be placed on the
screen, and the position and size of each
element can be specified.
(whether to display the title ba
r
can be specified, and a
caption can be specified)
(layout can be specified at your discretion, the table
pattern is determined according to the data type, and
data writing is handled by a method started from an
automatic scan key, using a timer whose interval value
can be specified)
(any text can be displayed)
(an arbitrary image
can be used)
Write definitions to a file in XML format.
