Open CNC Basic Operation Package 2 Operators manual Page 203

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 183 -

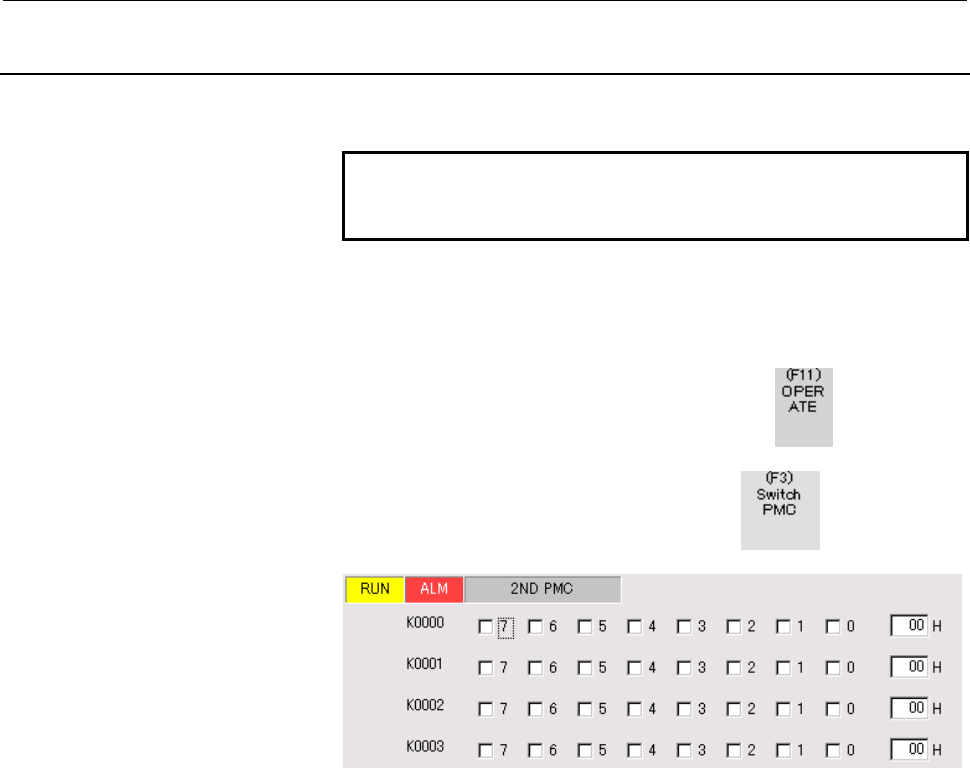

2.5.10.4 Switching among PMC keep relay paths
The display/setting target PMC path can be switched.
NOTE
This function is enabled when multiple PMC paths
are used.
Procedure
1 If the [PMC Keep Relay] screen is currently not displayed,
display the [PMC Keep Relay] screen as described in Subsection
2.5.10, "Displaying a PMC Keep Relay".
2 Press the display/operation switching key
to display the
operation keys.
3 Each time you press the operation key
, the target PMC
path is switched and the [PMC Keep Relay] screen is updated.
The PMC path is switched in the following order:
1. First PMC
2. Second PMC
3. Third PMC
4. Dual check safety
(only when the function is added)
