Open CNC Basic Operation Package 2 Operators manual Page 257

Operators manual
B-63924EN/01 3.CUSTOMIZATION
- 237 -
This scrndef tag has a definition name of pos_all. This example
specifies to display three child screens.
Their names are defined as allpos, modal, and speed. These names
match the respective child screen definition file names in the screen
folder except that the child screen names have no file extension (.xml).
The child screen definitions correspond to files on a one-to-one basis.
Their contents are described later. These definitions specify to
display these three screens.
The left and top tags specify, respectively, the positions of the left and
top sides of the parent screen in the child screen display area. The
width and height tags specify, respectively, the width and height of a
child screen in pixels.

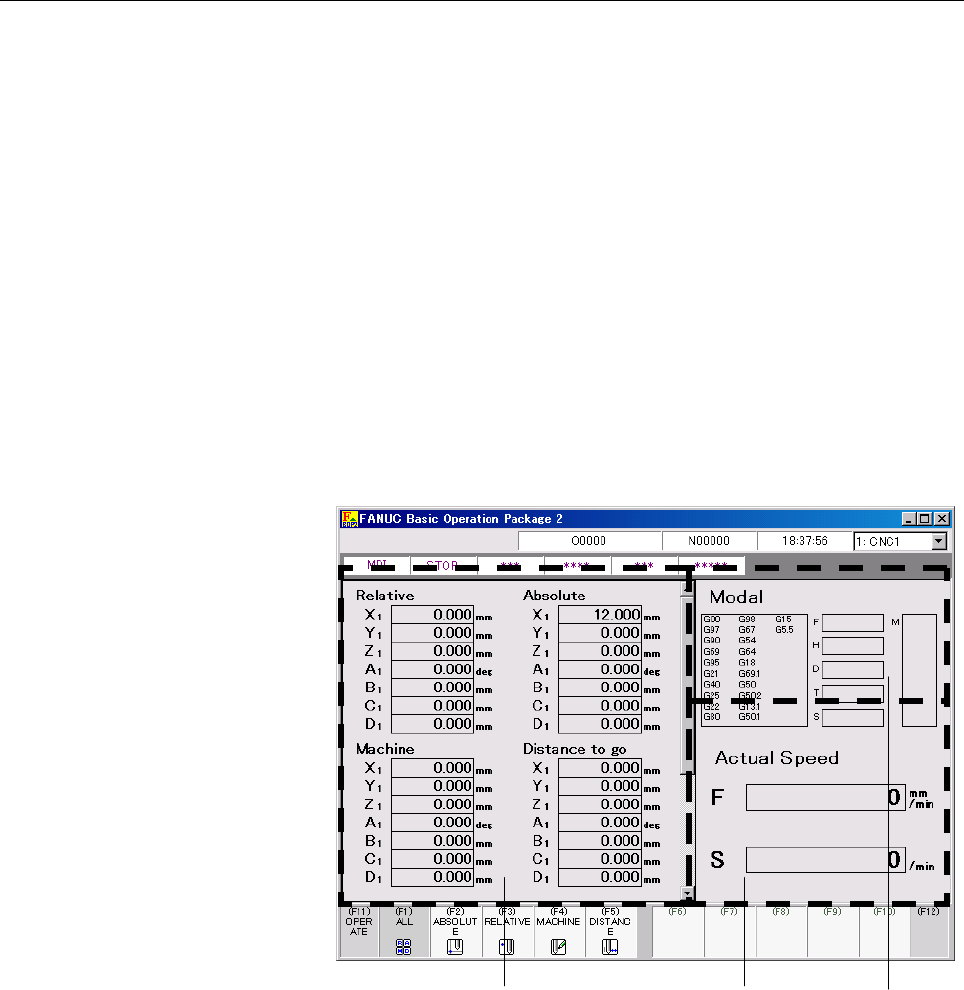

In this definition example, allpos, modal, and speed represent,
respectively, the [Overall Position], [Modal], and [Actual Speed]
screens.
[Overall Position] screen [Actual Speed] screen
[Modal] screen
