2.STANDARD OPERATION B-63924EN/01
- 60 -
2.3.3.5 Renaming an NC program
An NC program on the CNC can be renamed.
NOTE
To rename an NC program, release the protection
of the NC program.
Procedure

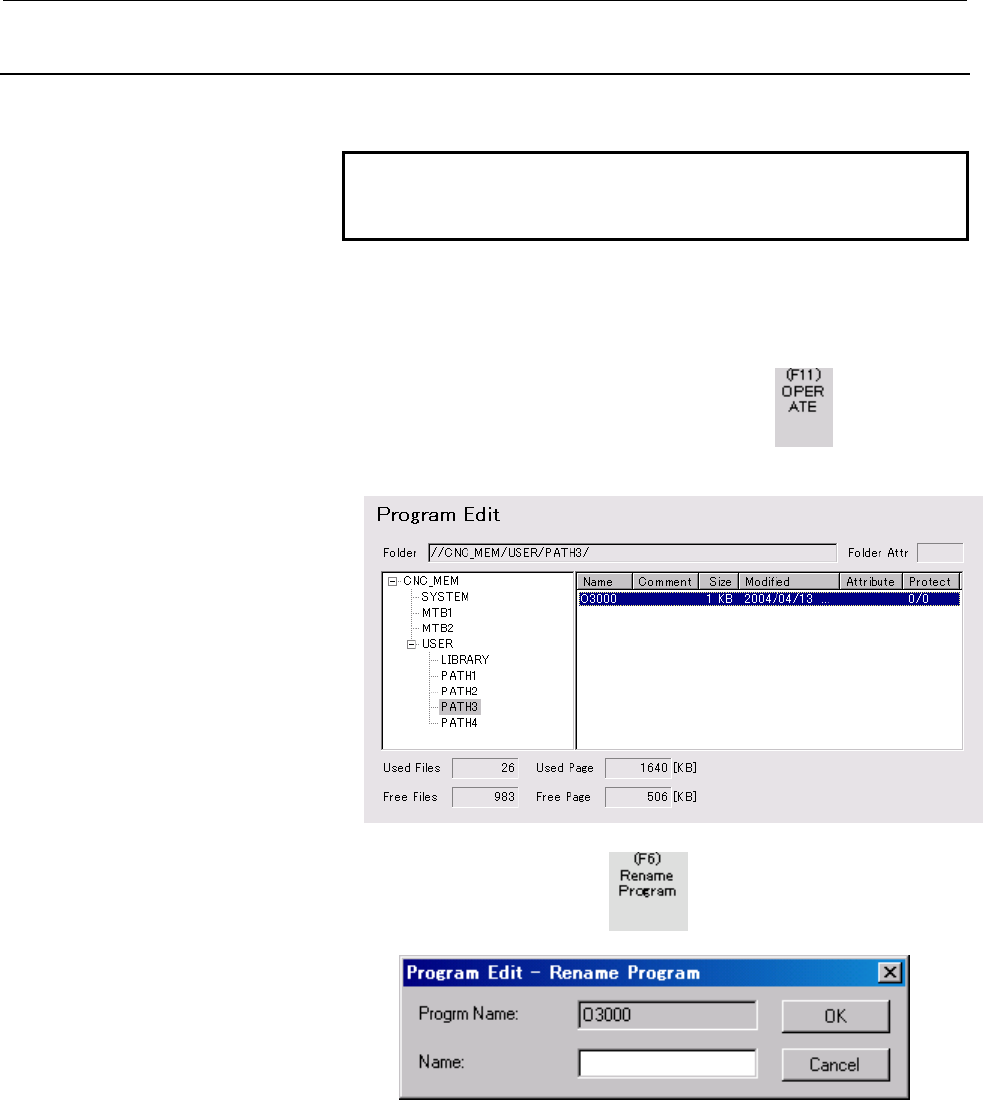

1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.3,
"Displaying the NC Program Directory".
2 Press the display/operation switching key
to display the
operation keys.
3 Select an NC program to be renamed.
4 Press the operation key to display the [Program Edit -
Rename Program] screen.
5 Enter a desired new name in the text box.
6 Click the <OK> button. The NC program is renamed.
