2.STANDARD OPERATION B-63924EN/01
- 138 -
2.4.5.2 Entering a measured value for workpiece origin offset data
Workpiece origin offset data can be set based on a measured value.
The following value is set as a workpiece origin offset value:
Workpiece origin offset value = Machine coordinate value -
Measured value
Procedure
1 If the [Work Zero Offset] screen is currently not displayed,
display the [Work Zero Offset] screen as described in Subsection
2.4.5, "Setting Workpiece Origin Offset".
2 Press the display/operation switching key
to display the
operation keys.
3 Select workpiece origin offset data to be set.

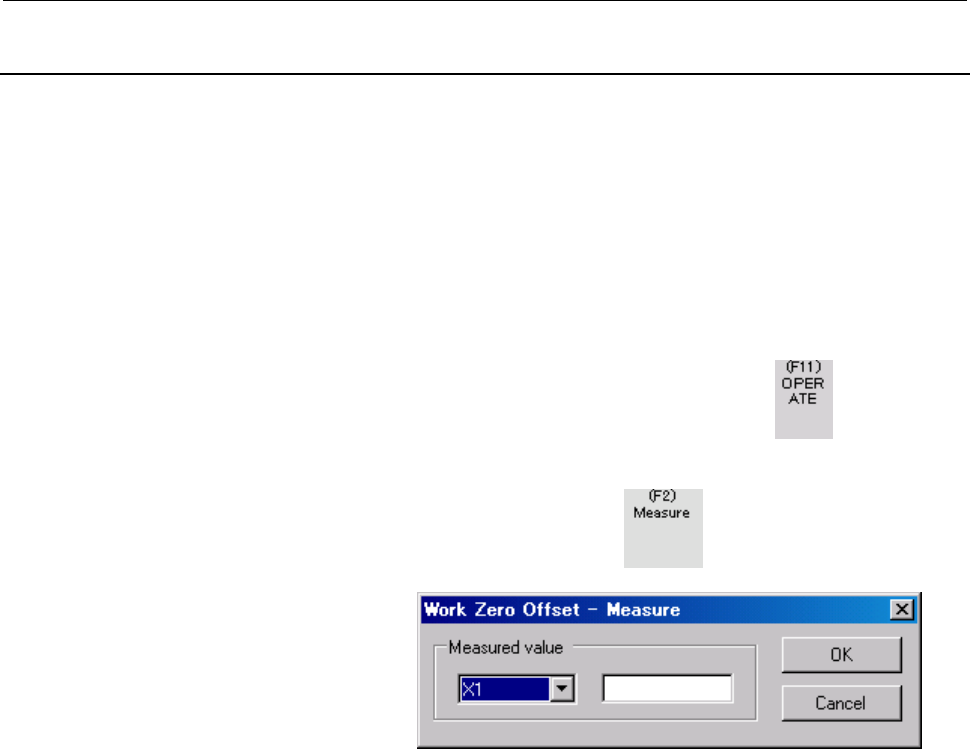

4 Press the operation key
to display the [Work Zero
Offset - Measure] screen.
5 Select an axis for which a measured value is to be entered, and
enter a measured value.
Then click the <OK> button. The measured value is set for
workpiece origin offset data.
