Open CNC Basic Operation Package 2 Operators manual Page 246

Operators manual
3.CUSTOMIZATION B-63924EN/01
- 226 -
3.4.2 confs Definition

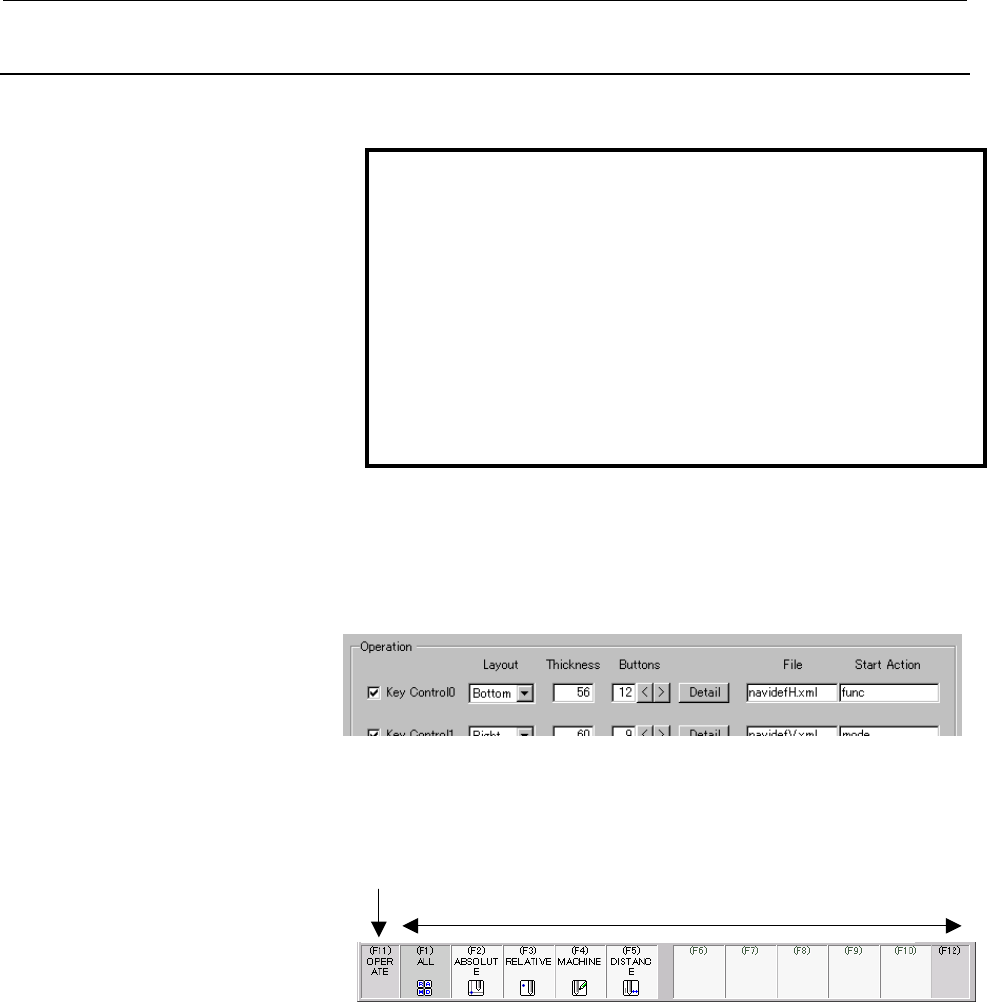

• confs tag definition example (navidefH.xml)
In this example, there is only one group definition (confdef tag). It is
set up under the name of standard. On the Operation tab of the
[Setup] screen, the target key control can be specified as a start action
as shown below. In addition, the total number (count tag) of buttons
defined in each colpart tag is set up as [Buttons].
The group setting consists of an 11-button group called sub and a
single-button group called switch. The groups are set up starting at
the left in the order in which they are defined.
The ref tag in each group (colpart tag) or a single button (sglpart tag)
indicates the funcdef tag name that is initially assigned to it.
<confs>
<bop2:comment>configuration definition</bop2:comment>
<confdef bop2:name="func">
<sglpart bop2:name="switch">
<ref>nopswitch</ref>
</sglpart>
<colpart bop2:name="sub">
<count>11</count>
<ref>positionmenu</ref>
</colpart>
</confdef>
</confs>
switch
sub 11 buttons
