2.STANDARD OPERATION B-63924EN/01
- 148 -

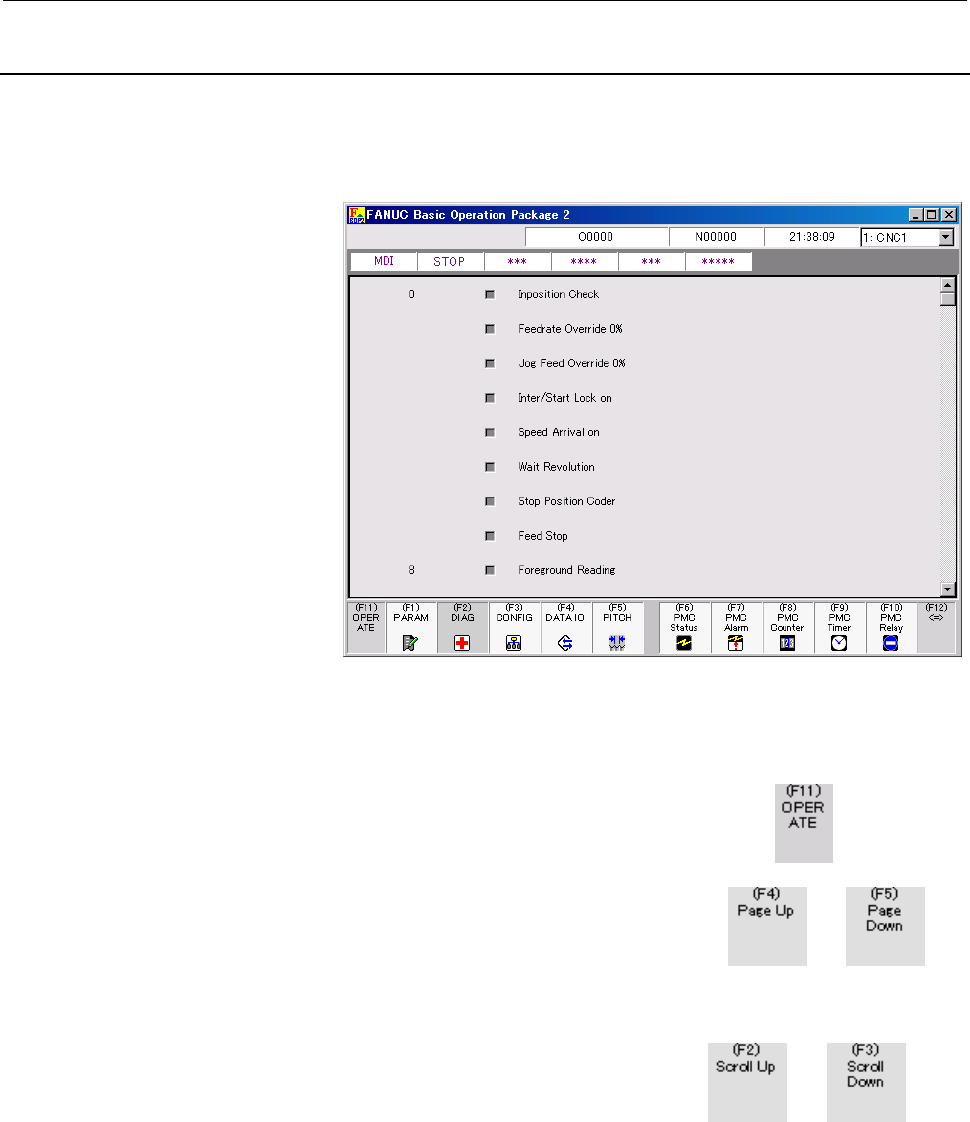

2.5.2 Displaying the Diagnosis Screen
Diagnostic data indicating machine state can be displayed.
This screen can be displayed by pressing the [SYSTEM] function key
and [DIAG] submenu key.
Procedure
1 If the [Diagnosis] screen is currently not displayed, display the
[Diagnosis] screen by pressing the [SYSTEM] function key and
[DIAG] submenu key.
2 Press the display/operation switching key
to display the
operation keys.
a) By pressing the operation key
or , the
[PageUp] or [PageDown] key on the keyboard, or the
[
↑
PAGE] or [
↓
PAGE] key on the MDI panel, select a page
to be displayed.
b) By pressing the operation key
or , or the
[
↑
] or [
↓
] key on the keyboard or MDI panel, scroll the
screen display one line at a time.
