Open CNC Basic Operation Package 2 Operators manual Page 301

Operators manual
B-63924EN/01 3.CUSTOMIZATION
- 281 -
The data_series tag can contain s_no, e_no, location, and
controlbase tag definitions; any other items (such as protect
attribute, datatype tag, and data tag) in the data_series tag are
ignored.
• s_no
This item allows you to define the start number of a custom
macro number display range.
• e_no
This item allows you to define the end number of a custom
macro number display range.
<data_series>
<s_no>0</s_no>
<e_no>306</e_no>
<location>
<left>10</left>
<top>30</top>
</location>
<controlbase>
:
Omitted (otherwise, control information is
described)
</controlbase>
</data_series>

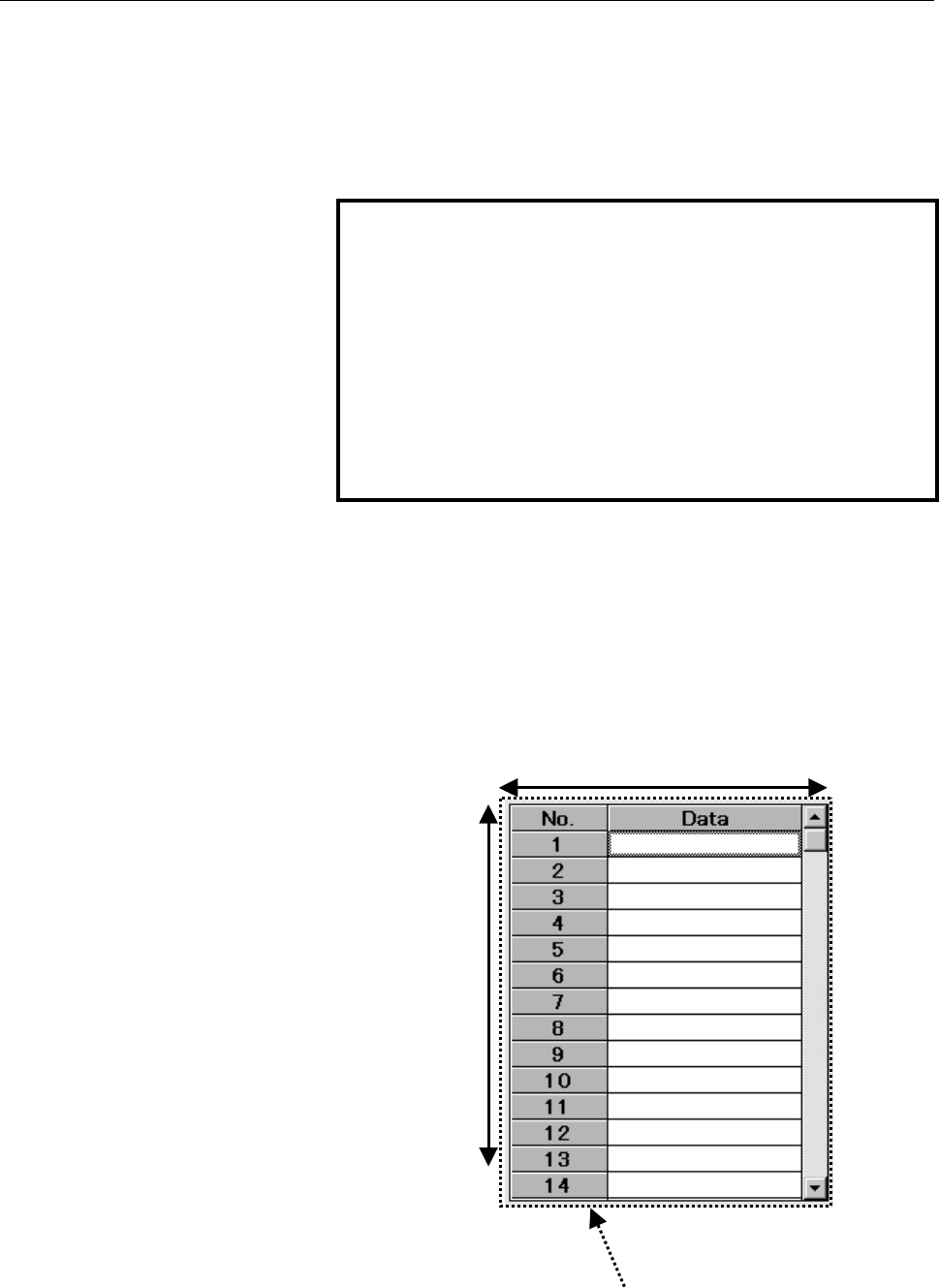

Display based on one data_series tag
Width defined in the size tag in the
controlbase tag
Height defined in the
size tag in the
controlbase tag
