Open CNC Basic Operation Package 2 Operators manual Page 66

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 46 -
2.2.3.4 Presetting the workpiece coordinate system
The workpiece coordinate system of the CNC can be preset.
The absolute coordinate on the preset axis is set as follows:
Absolute coordinate value = current absolute coordinate value -
the value on the corresponding axis for workpiece origin offset
number 0
NOTE
To preset the workpiece coordinate system, the
corresponding CNC option is required.
Procedure
1 If the [Absolute] screen or [Relative] screen (or [Overall
Position] screen) is currently not displayed, display the
[Absolute] screen or [Relative] screen (or [Overall Position]
screen) as described in Subsection 2.2.2, "Displaying the
Absolute Position", or Subsection 2.2.3, "Displaying the Relative
Position" (or Subsection 2.2.1, "Overall Position Display").
2 Press the display/operation switching key
to display the
operation keys.

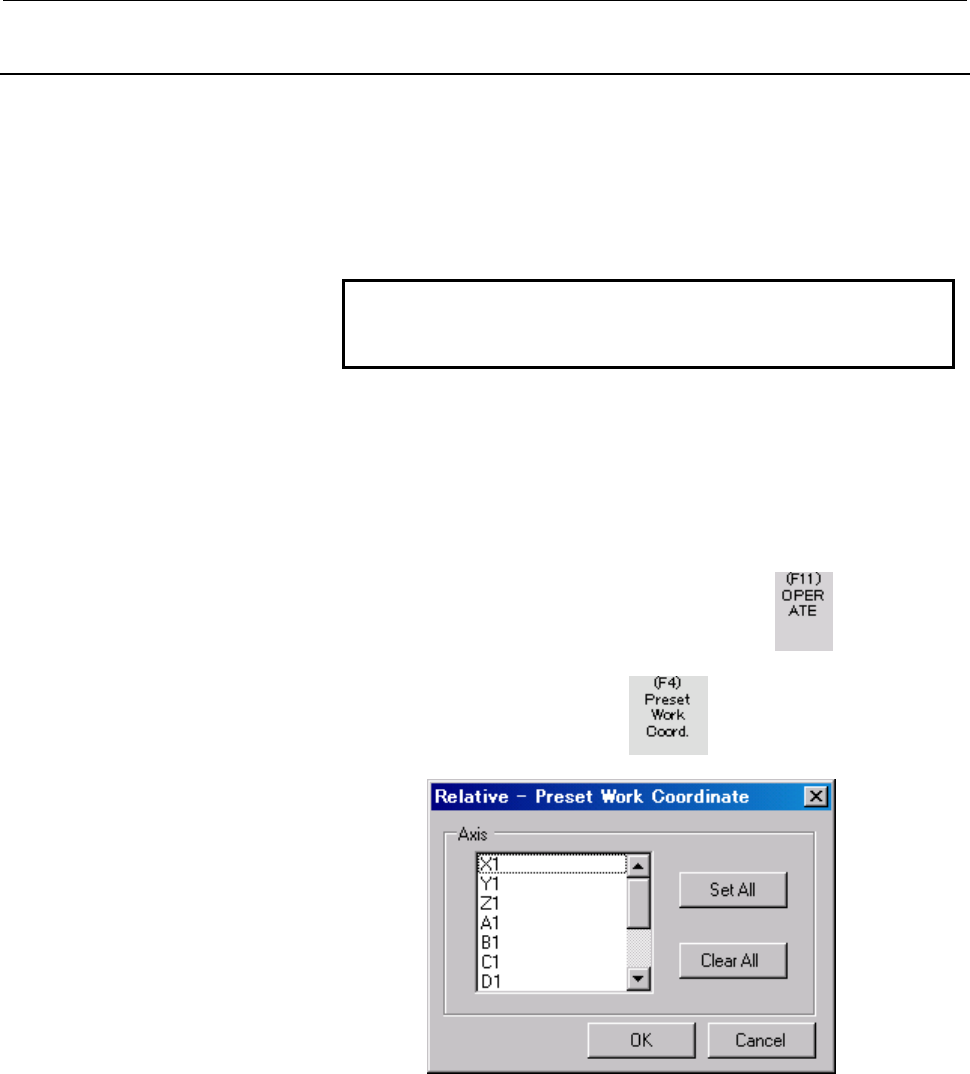

3 Press the operation key
to display the [Relative -
Preset Work Coordinate] screen.
