Open CNC Basic Operation Package 2 Operators manual Page 235

Operators manual
B-63924EN/01 3.CUSTOMIZATION
- 215 -
3.2 CUSTOMIZATION FILES
Each definition file is saved in the Definition folder within the folder
where the package has been installed.
The Definition folder contains two folders, FANUC_VGA and
FANUC_XGA, just after the installation of the package. The folders
on this level in the folder hierarchy are called “screen definition file
folders”.

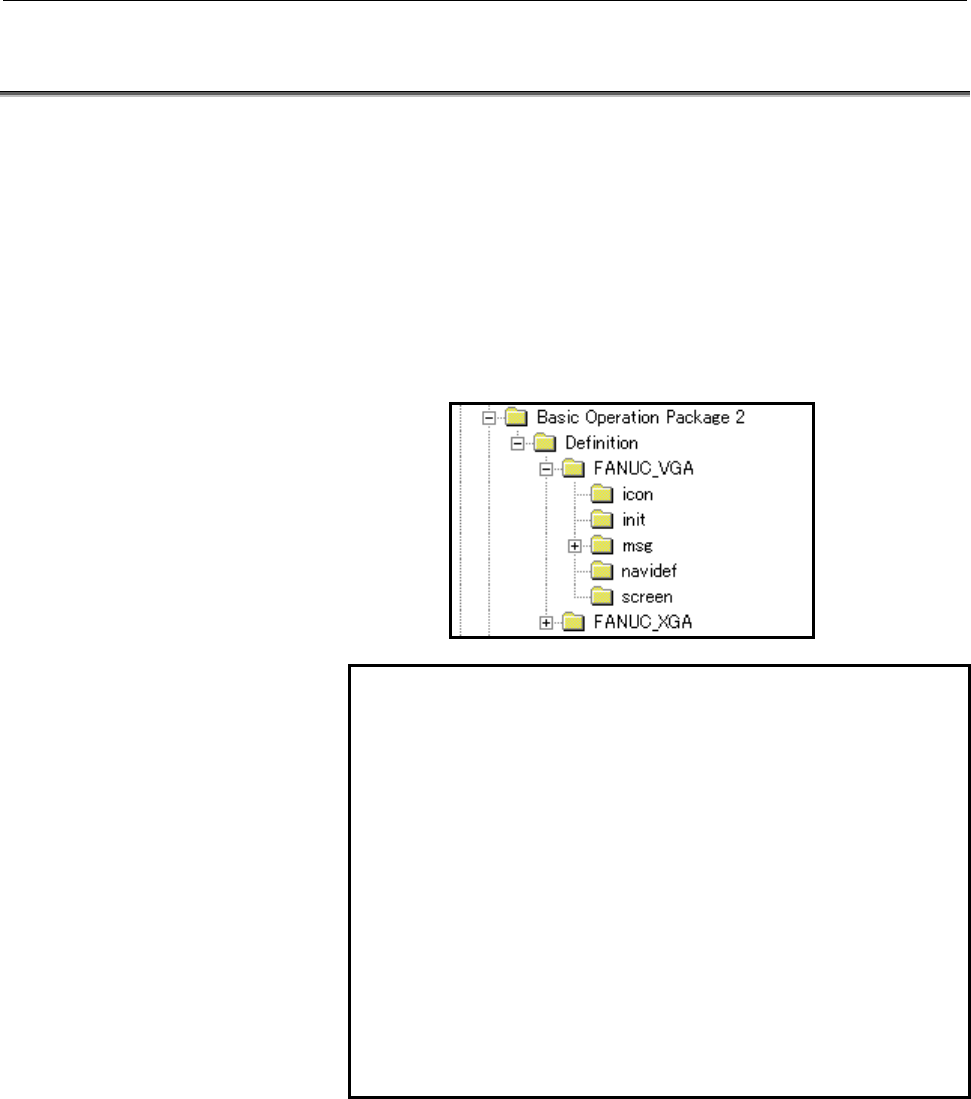

Each screen definition file folder has subfolders as shown below.
Each definition file is held in a subfolder.
NOTE
When customizing definition files:
● Make a copy of the FANUC_VGA or
FANUC_XGA folder under a different folder
name within the Definition folder. Edit the
definition files in the new folder.
● To use Basic Operation Package 2, select the
copied folder on the [Folder Select Setting]
screen.
If these rules are not followed, it is likely that Basic
Operation Package 2 may fail to operate normally
or what you edited may be lost when the package
is re-installed.
