B-63924EN/01 2.STANDARD OPERATION
- 35 -
2.1.4 Monitoring the Power State of Connected CNCs
Basic Operation Package 2 monitors the state of communication with
all connected CNCs. If communication is disconnected for a cause
such as the power-off state of a CNC, an error is displayed in the
following format on the title bar:
<CNC-number: CNC-name: error-code>
The same CNC number and CNC name as registered on the [Setup]
screen are displayed.
One of the following error codes is displayed:
Mode of connection Error code Type of error
Ethernet connection Err-16 Socket error
HSSB connection Err-9 HSSB error

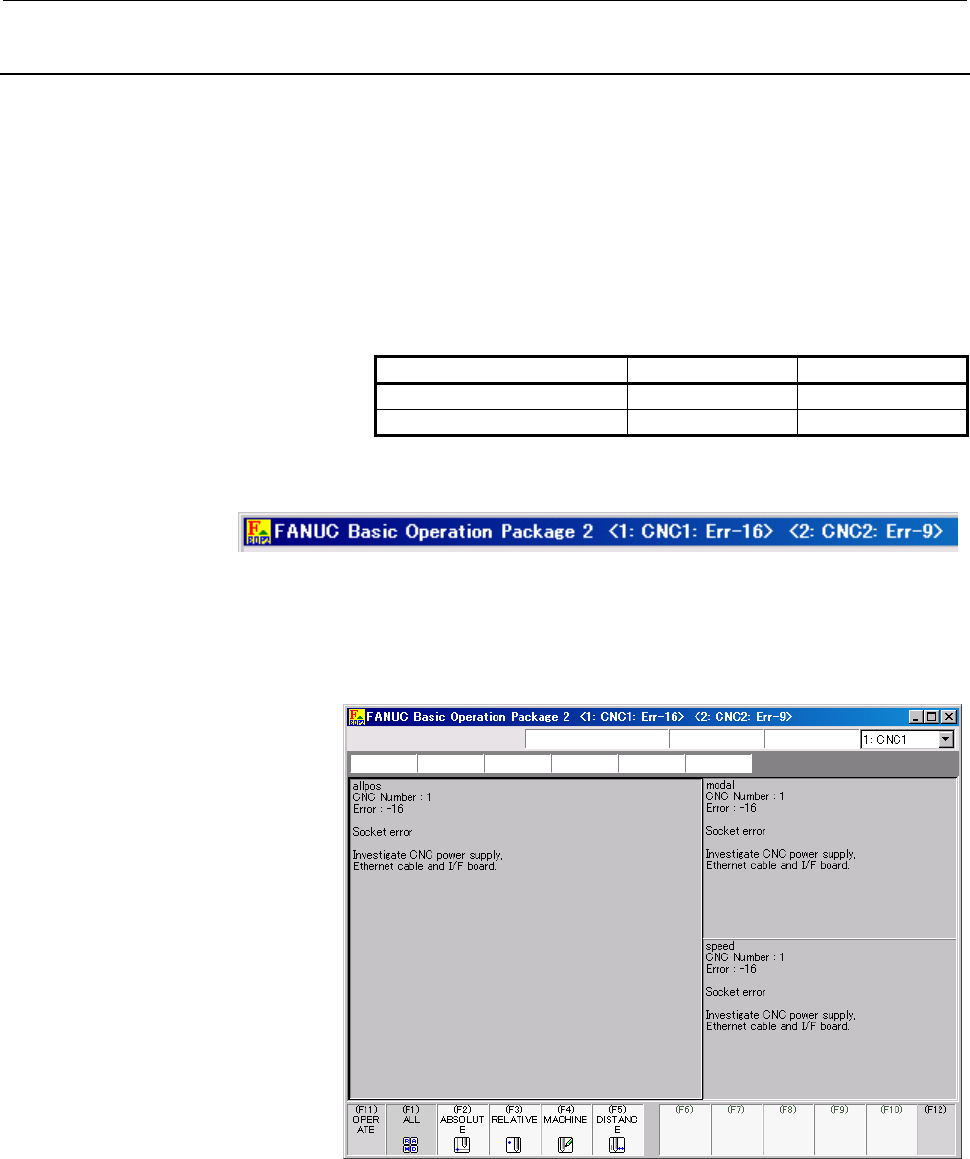

If connections are made with multiple CNCs, multiple errors may be
displayed at a time as in the example below.
If communication with only one CNC connected fails or
communication with the currently selected CNC among multiple
CNCs connected fails, the status bar becomes blank, and each child
screen provides details of the error. (The screen below shows an
example of error when an Ethernet connection is made.)
The following items are displayed:
- Screen name (on a screen definition file)
- CNC number
- Error code
- Type of error
- Error description
