Open CNC Basic Operation Package 2 Operators manual Page 58

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 38 -

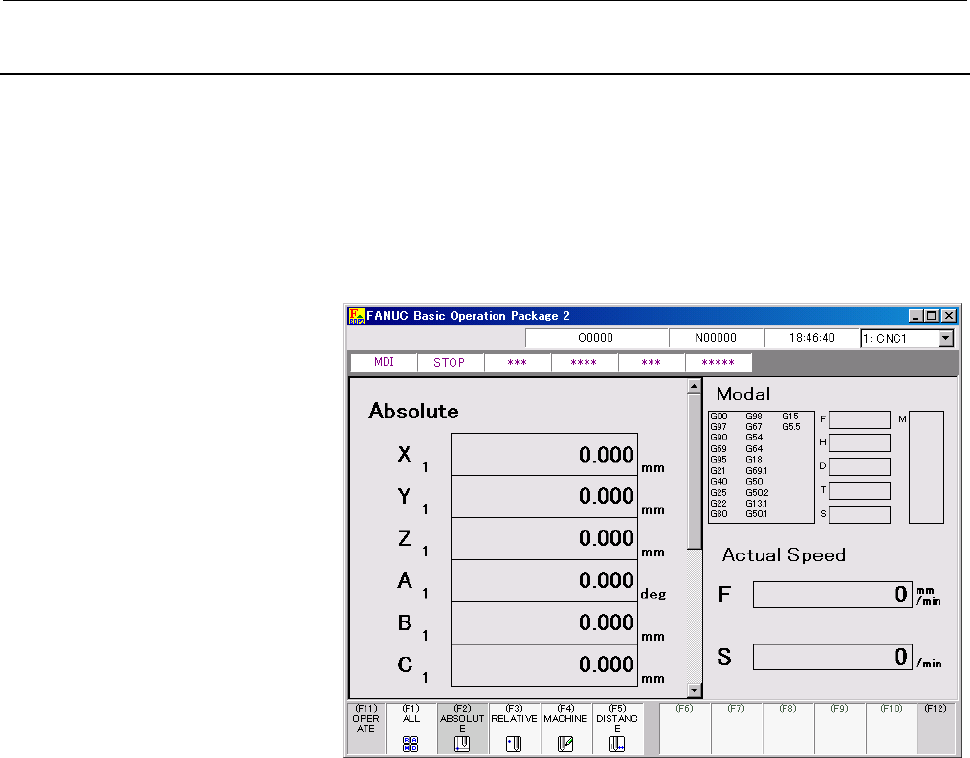

2.2.2 Displaying the Absolute Position
The absolute position of the CNC is displayed. Modal information
(such as G codes) and actual speed information (actual feedrate and
spindle speed) are displayed at the same time.
This screen can be displayed by pressing the [POSITION] function
key and [ABSOLUTE] submenu key.
This screen allows you to set the floating reference position and preset
the workpiece coordinate system.
For details of each function, see the following:
• Setting the floating reference position
→ Subsection 2.2.3.3, "Setting the machine position to the
floating reference position"
• Presetting the workpiece coordinate system
→ Subsection 2.2.3.4, "Presetting the workpiece coordinate
system"
