Open CNC Basic Operation Package 2 Operators manual Page 164

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 144 -
Procedure
1 If the [Parameter] screen is currently not displayed, display the
[Parameter] screen by pressing the [SYSTEM] function key and
[PARAM] submenu key.

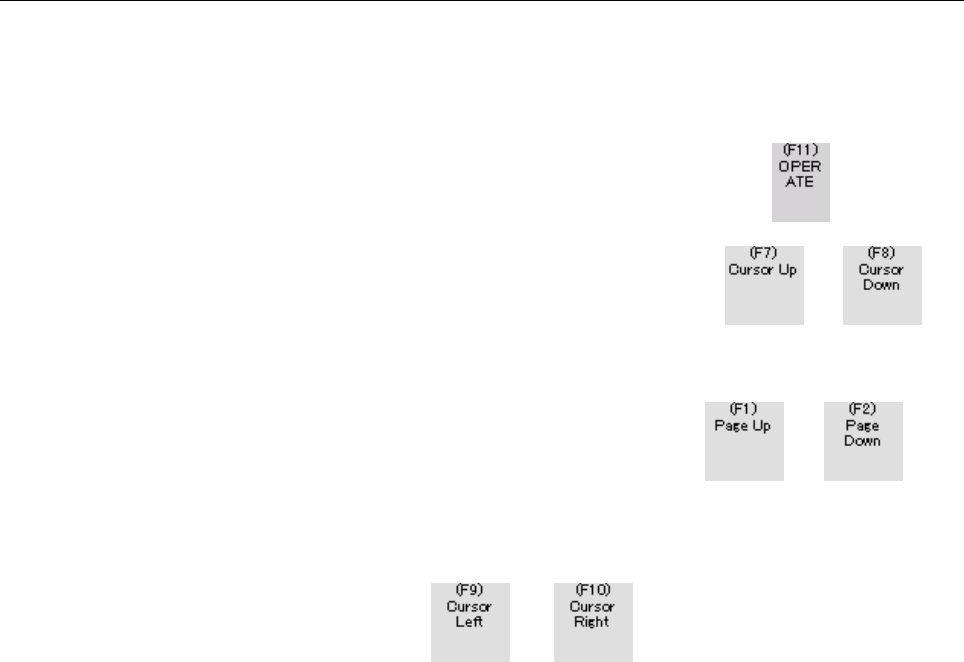

2 Press the display/operation switching key
to display the
operation keys.
a) By pressing the operation key
or , the
[PageUp] or [PageDown] key on the keyboard, or the
[
↑
PAGE] or [
↓
PAGE] key on the MDI panel, select a page
to be displayed.
b) By pressing the operation key
or , or the
[
↑
] or [
↓
] (cursor) key on the keyboard or MDI panel, select
a desired item.
c) For a parameter of bit type (for which the check box is
turned on or off), select a bit by pressing the operation key
or , or the [
←
] or [
→
] key on the
keyboard or MDI panel.
For parameter setting, see Subsection 2.5.1.2, "Setting parameters".
