Open CNC Basic Operation Package 2 Operators manual Page 183

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 163 -

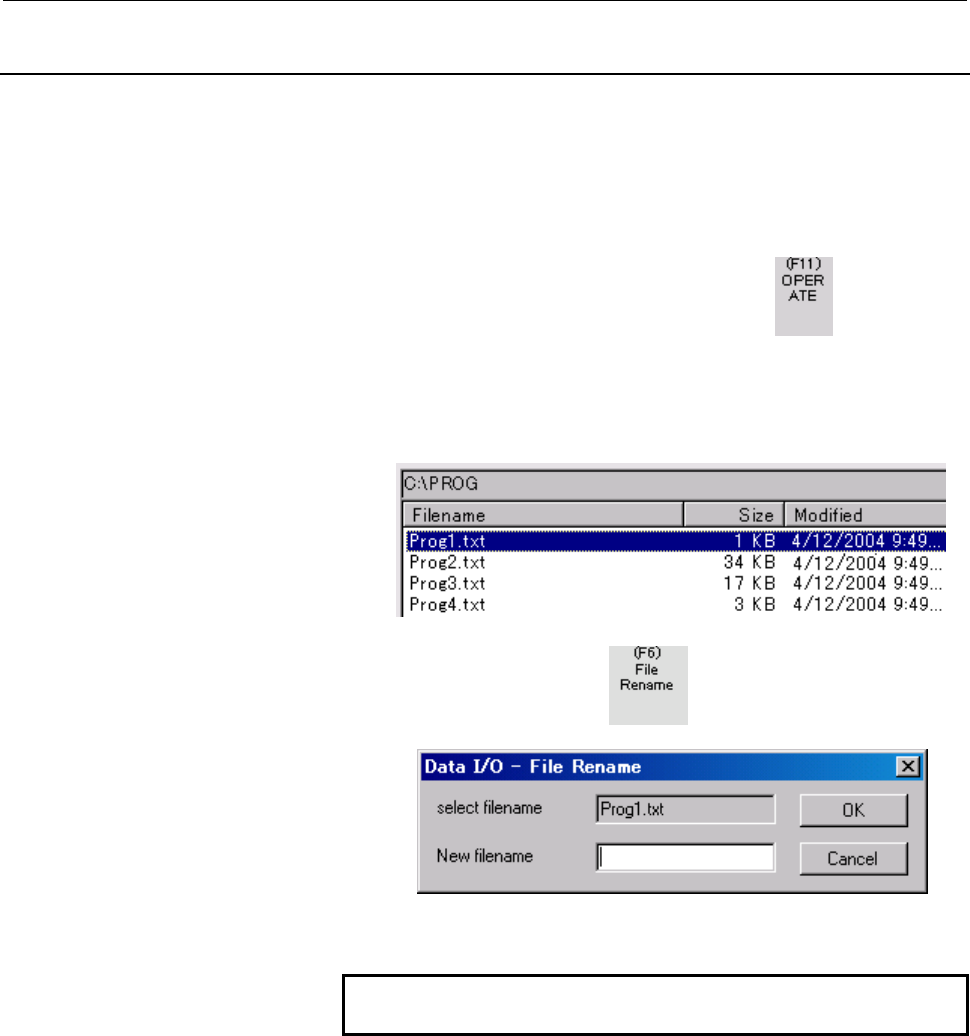

2.5.4.6 Renaming various data files
Various data files can be renamed.
Procedure
1 If the [Data I/O] screen is currently not displayed, display the
[Data I/O] screen as described in Subsection 2.5.4,
"Inputting/Outputting Data".
2 Press the display/operation switching key
to display the
operation keys.
3 Select a folder to be displayed as a list, as necessary.
For details, see Subsection 2.5.4.1, "Setting parameters for
input/output".
4 Select a file to be renamed on the list.
5 Press the operation key to display the [Data I/O - File
Rename] screen.
6 Enter a desired new file name then click the <OK> button.
NOTE
This function cannot rename an NC program.
