Open CNC Basic Operation Package 2 Operators manual Page 77

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 57 -

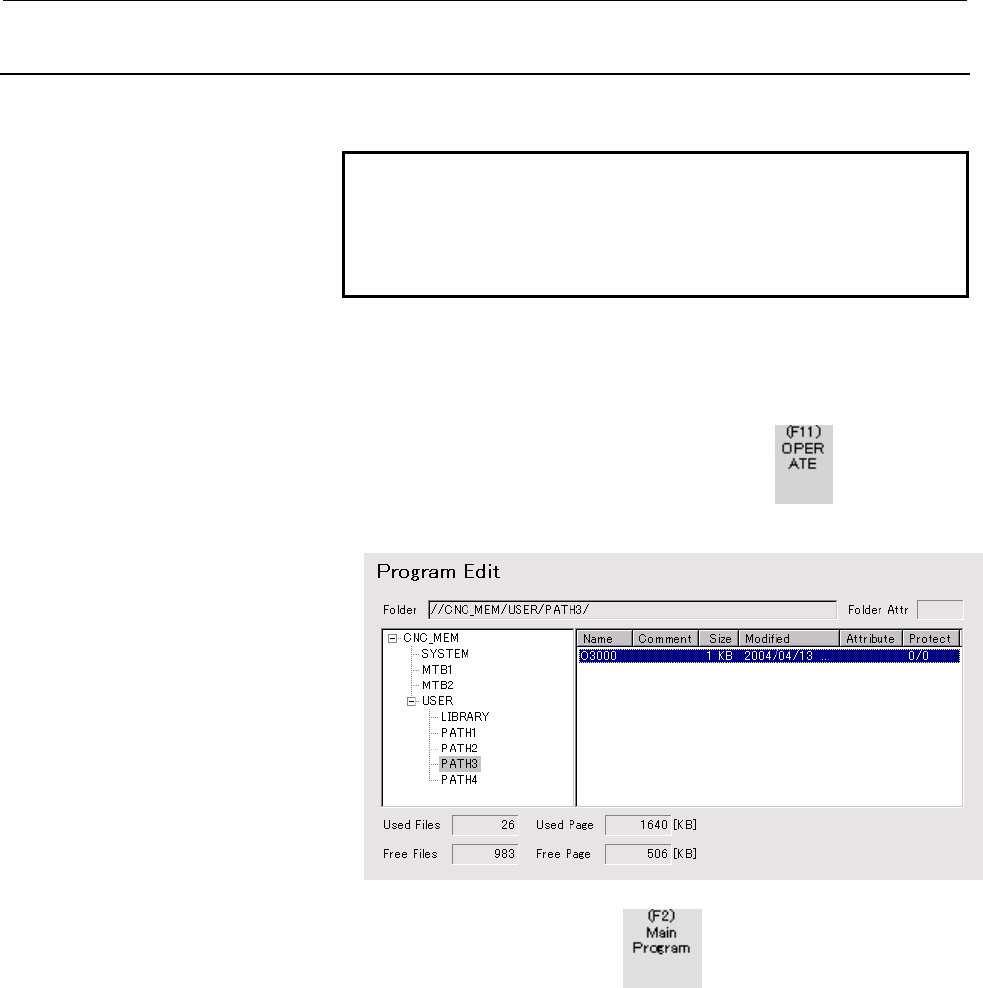

2.3.3.2 Selecting an NC program to be executed
An NC program to be executed can be selected.
NOTE
To select an NC program to be executed, set the
following status:
• Operation
- EDIT mode, or reset in MEMORY mode
Procedure
1 If the [Program Edit] screen is currently not displayed, display
the [Program Edit] screen as described in Subsection 2.3.3,
"Displaying the NC Program Directory".
2 Press the display/operation switching key
to display the
operation keys.
3 Select an NC program to be executed.
4 Press the operation key . The specified program is
selected as the NC program to be executed, and the number (or
name) of the program is displayed on the status bar.
