Open CNC Basic Operation Package 2 Operators manual Page 59

Operators manual
B-63924EN/01 2.STANDARD OPERATION
- 39 -
2.2.3 Displaying the Relative Position
The relative position of the CNC is displayed. Modal information
(such as G codes) and actual speed information (actual feedrate and
spindle speed) are displayed at the same time.

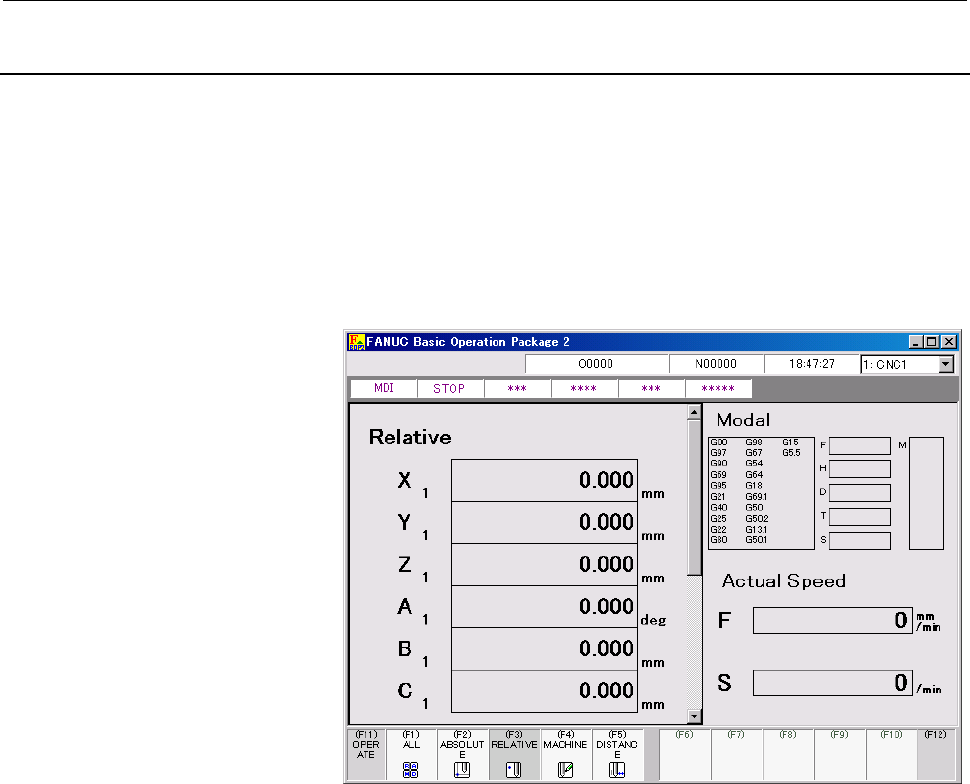

This screen can be displayed by pressing the [POSITION] function
key and [RELATIVE] submenu key.
This screen allows you to reset and preset relative coordinates, set the
floating reference position, and preset the workpiece coordinate
system.
For details of each function, see the following:
• Resetting relative coordinates
→ Subsection 2.2.3.1, "Resetting relative coordinates"
• Presetting relative coordinates
→ Subsection 2.2.3.2, "Presetting relative coordinates"
• Setting the floating reference position
→ Subsection 2.2.3.3, "Setting the machine position to the
floating reference position"
• Presetting the workpiece coordinate system
→ Subsection 2.2.3.4, "Presetting the workpiece coordinate
system"
