3.CUSTOMIZATION B-63924EN/01
- 220 -

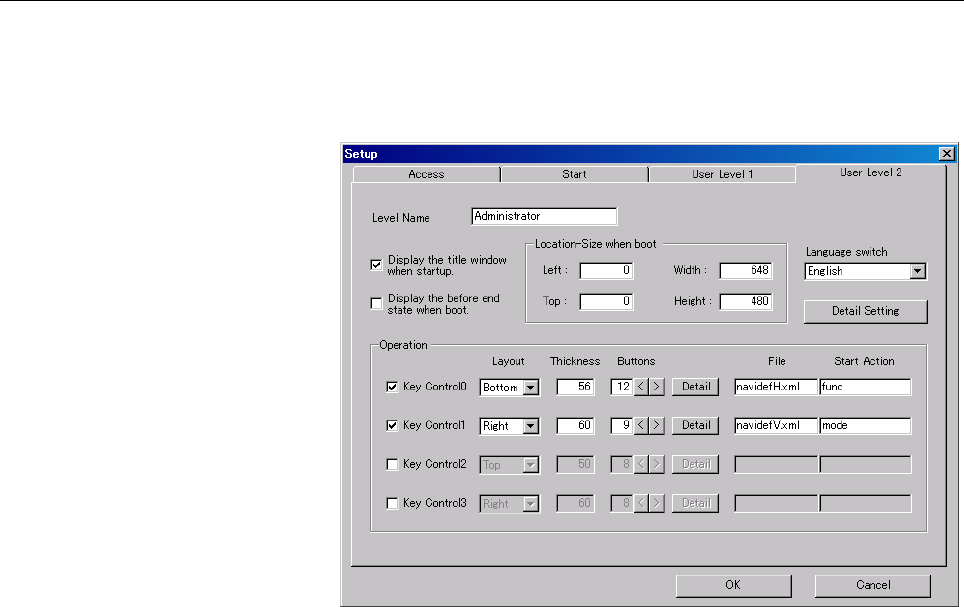

The screen configuration and operation system can be defined
separately for each user level. Open the user level tab that
corresponds to the level you want to set up or change.
<Operation group box>
This box allows you to set up key control (array of operation keys)
layout, size (thickness), the number of buttons in key controls, and the
navigation definition file corresponding to the key controls.
• Selecting key controls (check box)
Turning on key control check boxes causes the corresponding
key controls to appear on the screen. Up to 4 key controls can
be displayed.
• Layout
This item allows you to specify where to place each key control.
A key control can be placed by making it tangential to one of 4
sides (top, bottom, left, and right sides) of the screen. In
assigning sides, a key control having a lower number has
precedence over the other key controls. Assuming the bottom
and left sides are assigned, respectively, to key control keys 1
and 2, for example, key control 1 first occupies the bottom side,
and key control 2 is placed tangentially to the left side above key
control 1. Assuming the left and bottom sides are assigned,
respectively, to key control keys 1 and 2, for example, key
control 1 first occupies the left side, and key control 2 is placed
tangentially to the bottom side at the right of key control 1.
• Buttons
This item allows you to specify how many operation keys are to
be displayed in each key control. Up to 16 buttons per key
control can be displayed.
