Open CNC Basic Operation Package 2 Operators manual Page 50

Operators manual
2.STANDARD OPERATION B-63924EN/01
- 30 -

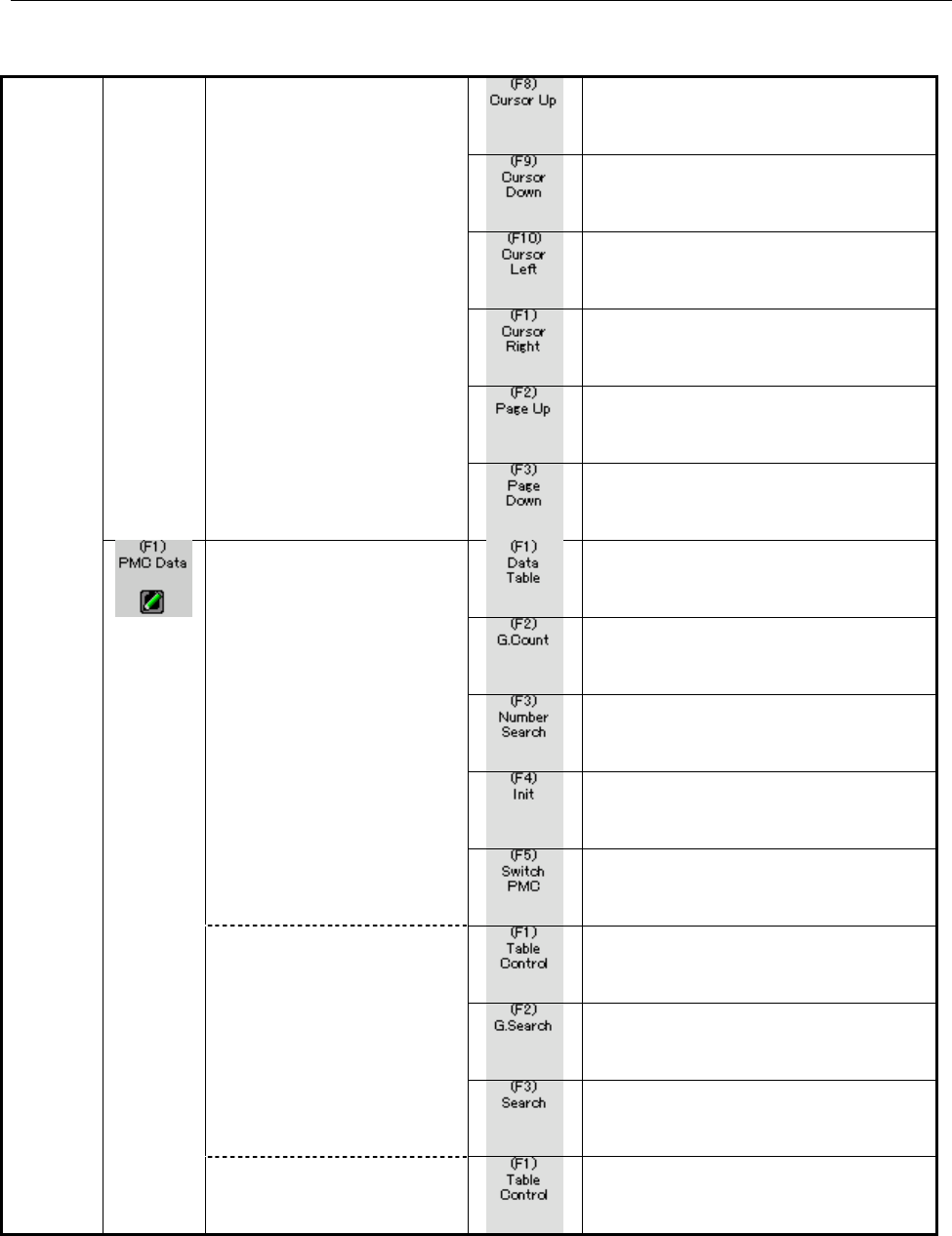

Moves the cursor to the previous PMC
address.
Moves the cursor to the next PMC
address.
Moves the cursor to the left-hand bit.
Moves the cursor to the right-hand bit.
Displays the previous page.
Displays the next page.
Switches the screen display to the data
table screen.
Sets the number of groups.
Displays the table with a specified number.
Perform initialization by deleting the entire
data control.
PMC Data
(table control)
Selects a display target PMC.
Switches the screen display to the table
control screen.
Displays the data table with a specified
number.
PMC Data
(table data)
Searches for a specified address.
PMC Data
(bit-type table data)
Switches the screen display to the table
control screen.
Previous page
Next page
