5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 86 -
-3 : Bit type(Bit-3)
-4 : Bit type(Bit-4)
-5 : Bit type(Bit-5)
-6 : Bit type(Bit-6)
-7 : Bit type(Bit-7)

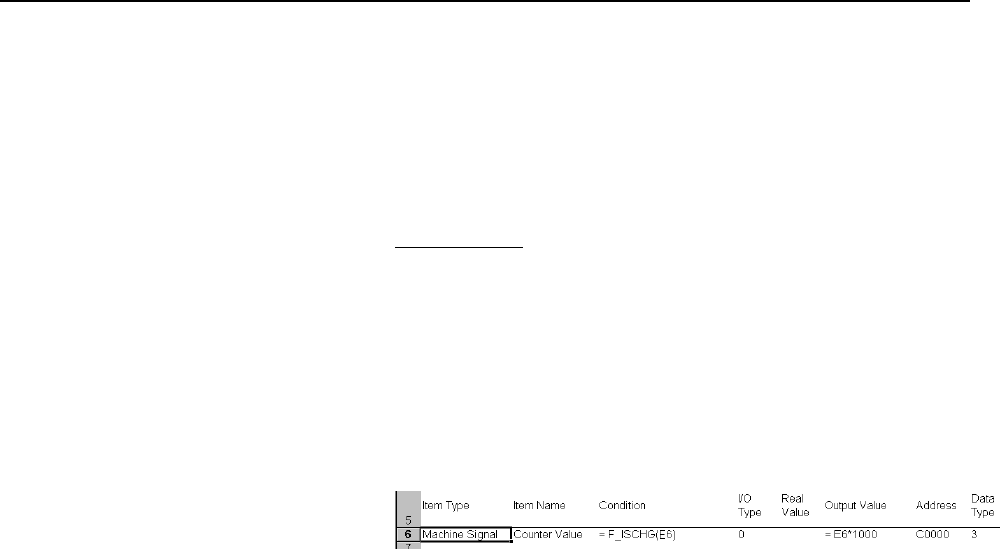

Setting example
The setting example for monitoring the following machine signal is
illustrated below.
Monitor data : Counter signal of CNC machine (Address:C0000).
Data type : Long type
Condition : When the value changes
I/O type : Current value
Output value : Real value*1000
(2) Log output
The output of the logging data is specified by setting the output item as
the logging data, the cell position of the item at the destination, the
output worksheet name, and so on.
Item name
Set the worksheet name where the logging data is output. The
worksheet name is up to 31 characters. However, the following
characters cannot be used.
/ : [ ] *
Condition
Set the condition formula to output the logging data When the
condition is set, the logging data is output if condition formula is
satisfied (=TRUE).
When the condition is not set, the logging data is output every
sampling interval of that CNC machine.
The format of the condition formula follows to the grammar of MS
Excel. For instance, when the log data output only when the value of
cell F6 is larger than 0, set the following condition formula.
= F6>0
Refer to the manual and help of MS Excel for details of the format of
the condition formula of MS Excel.
