B-63364EN/03 2. BASIC KNOWLEDGE
- 15 -
2.1 STARTING AND TERMINATING THE MACHINING STATUS
MONITOR PACKAGE
This section describes how to start and terminate the Machining Status Monitor
Package and provides notes on starting it.
2.1.1 Starting the Machining Status Monitor Package
Procedure
1. Click the Windows [Start] button.
2. Click [Program].
3. Click
[Machining Status Monitor Package] :HSSB version
[Machining Status Monitor Package (Ethernet)]:Ethernet version
to start it.
If the MS Excel macro virus protection option is not enabled, the
Machining Status Monitor Package starts immediately.

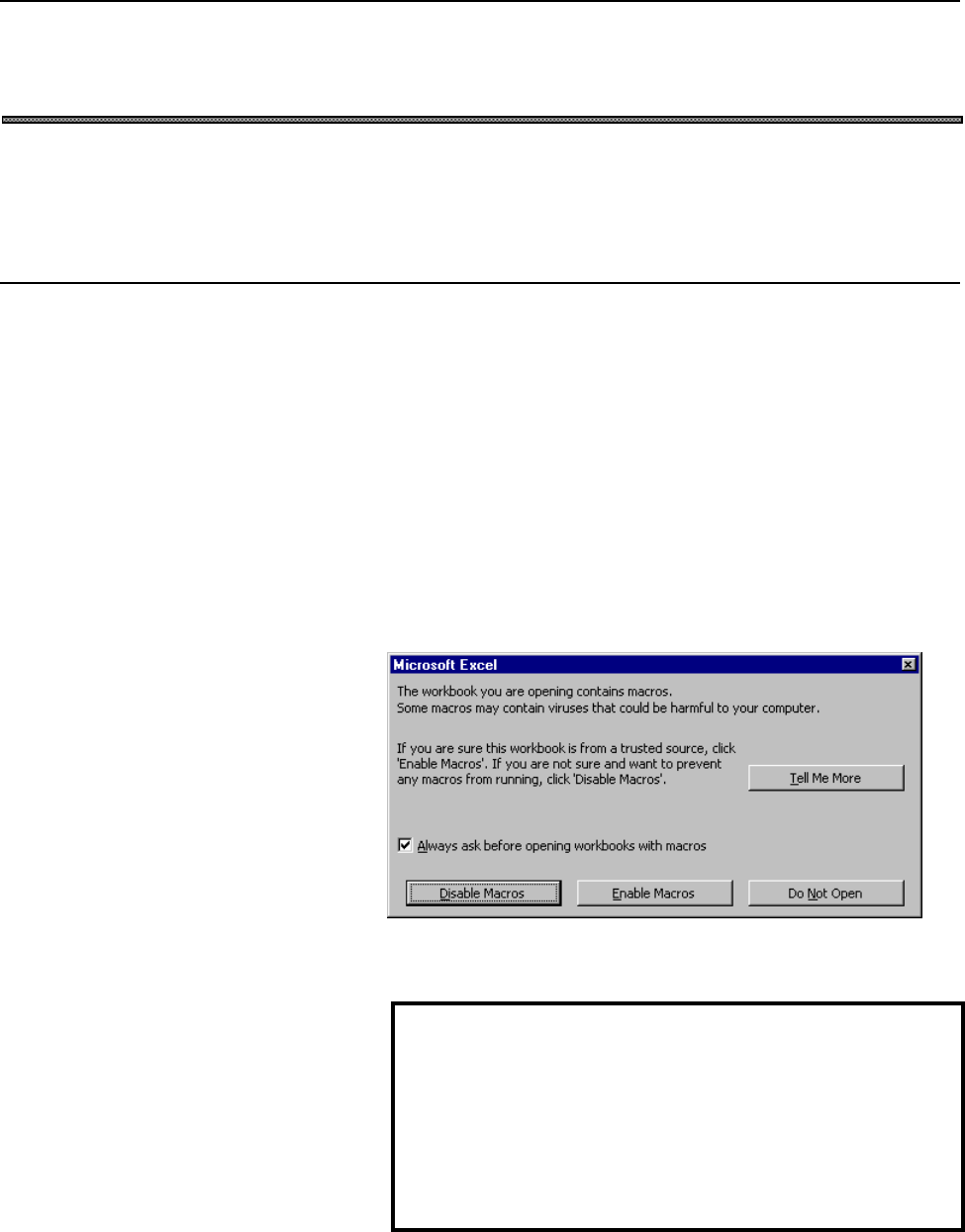

Otherwise, the following message appears:
4. Click the <Enable Macros> button.
The Machining Status Monitor Package screen shown below appears.
NOTE
If you click the <Disable Macros> button or <Do Not Open>
button, the Machining Status Monitor Package will not start
correctly.
Follow the procedure described in Section 2.1.2, "Terminating
the Machining Status Monitor Package," then retry the start
procedure.
