OPEN CNC (Machining Status Monitoring Package) Operators manual Page 57

Operators manual
B-63364EN/03 3. REGISTERING CNC MACHINES TO BE MONITORED AND DELETING REGISTERED CNC MACHINES
- 41 -
3.2.2 Registering CNC Machines to Be Monitored
In case of the Ethernet version, you have to register the CNC machine that is
connected via the Ethernet and monitored, by the following procedure
explicitly.
Procedure

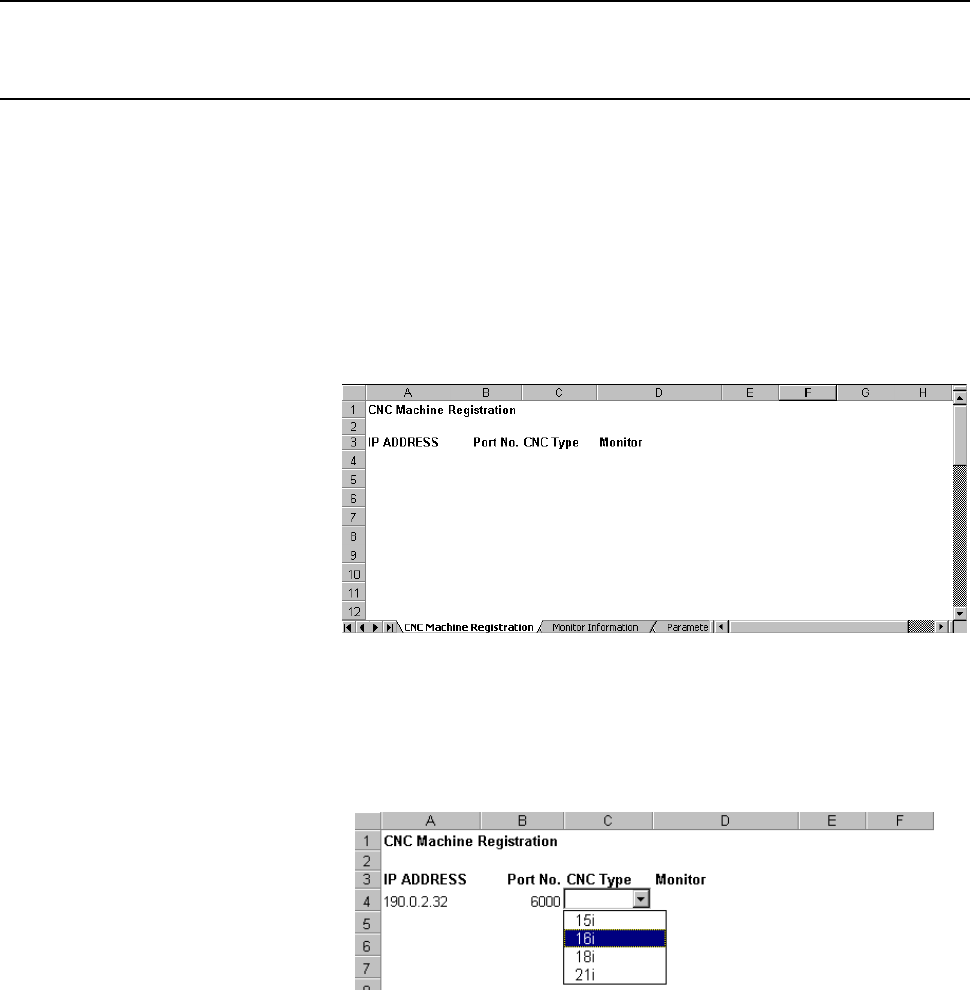

1. Select the [CNC Machine Registration] worksheet.
The [CNC Machine Registration] worksheet appears.
2. At the [CNC Machine Registration] worksheet, input IP address in the
column of IP ADDRESS and Port number in the column of Port No. A
host name can be input in IP ADDRESS. And select the column of CNC
Type, then the CNC Type combo box appears. Select a CNC type.
