OPEN CNC (Machining Status Monitoring Package) Operators manual Page 47

Operators manual
B-63364EN/03 3. REGISTERING CNC MACHINES TO BE MONITORED AND DELETING REGISTERED CNC MACHINES
- 31 -
machines to be monitored. For each CNC machine, parameter settings,
monitor items, log output items, and the machining program information
registration worksheet are created automatically. If a node name includes a
character that cannot be used with the Machining Status Monitor Package,
the CNC machine name in the Machining Status Monitor Package becomes
"NC-*" (*: Serial number). The restrictions imposed on node names are
described in Notes, above.
If two CNC machines are connected according to the setting of the driver of
the High Speed Serial Bus, for example, the [CNC Machine Registration]

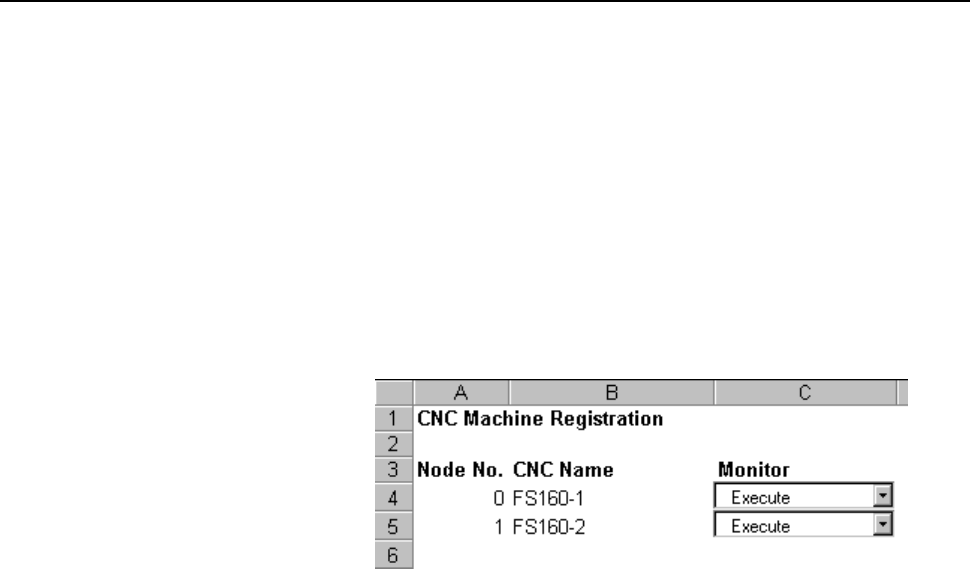

worksheet is as follows:
In the above status, the default values are set on the setting and registration
worksheet of each CNC, so that each CNC machine can be monitored. To
monitor these two CNC machines, no operation is required on this
worksheet.
When a CNC machine is connected by setting the driver of the High Speed
Serial Bus but is not to be monitored, delete the CNC machine. For details
of CNC machine deletion, see Section 3.1.3, "Deleting CNC Machines Not
to Be Monitored."
To reregister a CNC machine again after it has been deleted, perform CNC
machine registration. For details of CNC machine reregistration, see
Section 3.1.4, "Reregistering Deleted CNC Machines."
When the Machining Status Monitor Package is started after being
terminated at least once.
1) When a node name connected by setting of the driver of the High
Speed Serial Bus is modified
The CNC machine name registered in the Machining Status Monitor
Package is automatically updated to the modified node name. The
parameter settings, monitor items, log output items, and machining
program information registration worksheet name of the CNC
machine are automatically updated according to the modified CNC
machine name. If a node name includes an invalid character, a CNC
machine name is automatically created in the same way as when the
Machining Status Monitor Package is started for the first time.
