OPEN CNC (Machining Status Monitoring Package) Operators manual Page 140

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 124 -

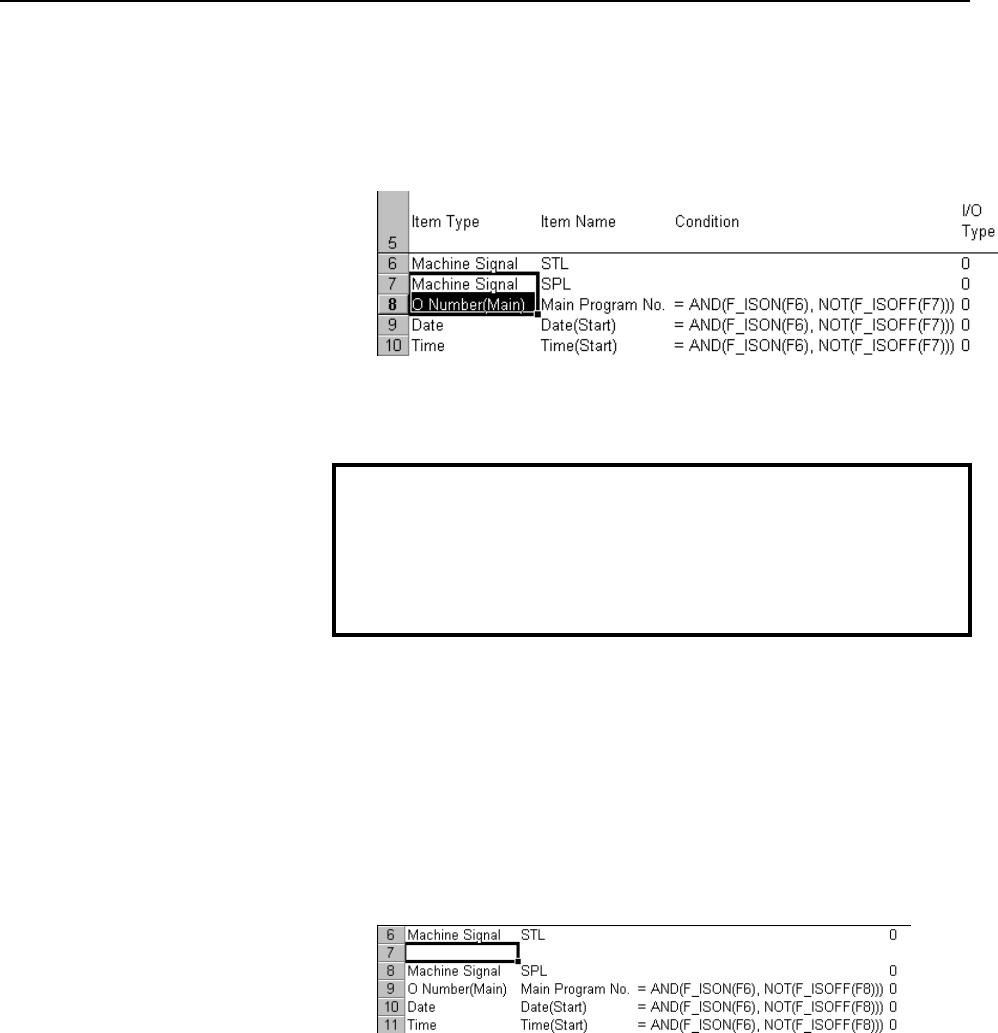

Explanation
Insertion of blank rows
By selecting cells in multiple rows in step 2. in the above procedure,
multiple blank rows can be inserted.
If, however, the cells selected in step 2. or 1. in the above procedure
include rows not less than the header rows, no rows can be inserted.
If the reference cell positions of monitor items and log output items change
due to the insertion of a row, they are automatically changed to the cell
positions assumed after the insertion of the row.
For the above example, the reference cell position of the monitor data for
the machine signal SPL changes from F7 to F8 due to the insertion of the
row. In any conditional expressions and formulas in other monitor items
and log output items that reference cell F7, the reference cell position is
automatically changed as shown below:
NOTE
A monitor item or log output item, in which all the members are blank, is
regarded as being the last item. Thus, when a blank row is added, and
left blank, any monitor items and log output items registered after that
blank row are ignored.
