OPEN CNC (Machining Status Monitoring Package) Operators manual Page 171

Operators manual
B-63364EN/03 6. MONITORING CNC MACHINES AND OUTPUTTING LOG DATA
- 155 -

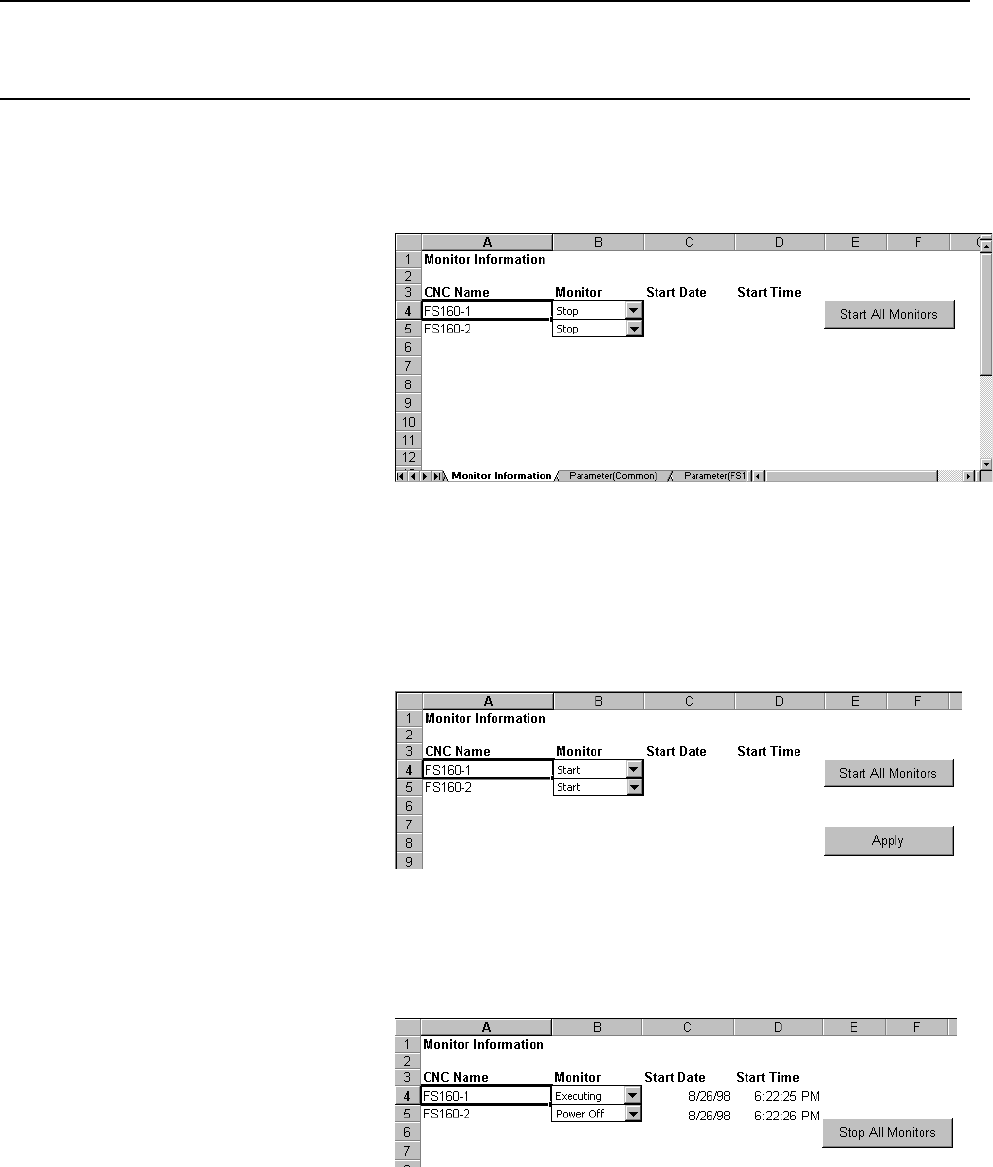

6.2.1 Starting the Monitoring CNC Machines Manually
Procedure
1. Choose the [Monitor Information] worksheet.
2. Change "Stop," displayed in the CNC machine monitor combo box, to
"Start."
To start the monitoring all CNC machines for which "Stop" is displayed,
click the <Start All Monitors> button.
The <Apply> button appears.
3. Click the <Apply> button.
"Stop," displayed in the monitor combo box, changes to "Executing" or
"Power off," and monitoring starts.
"Executing," displayed in the monitor combo box, indicates that
monitoring of the corresponding CNC machine is being executed
normally.
"Power Off," displayed in the monitor combo box, indicates that the
power to the corresponding CNC machine is off. When the power to the
CNC machine is turned on, "Power Off," displayed in the monitor
