OPEN CNC (Machining Status Monitoring Package) Operators manual Page 69

Operators manual
B-63364EN/03 4. SETTING THE GENERAL PARAMETERS FOR THE MACHINING STATUS MONITOR PACKAGE
- 53 -
4.1.1 Setting Data for Log Data Output Files
For the simultaneous monitoring of multiple CNC machines and log data output,
one of the following log data output methods can be used:
1) The log data for all CNC machines is output to a single log data output
file.
2) The log data for each CNC machine is output to a log data output file
assigned to that CNC machine.
The following data is set for parameter setting:
• Selection from the two log data output methods described above
• Automatic save interval, output style for transition from one month to the
next, output file name, output folder name, and so forth when the log data
for all CNC machines is output to a single file
• Whether to prohibit overwriting when a new log data output file is created
If you select output of the log data for each CNC machine to a log data output
file for each CNC machine, a log data output file name, output folder name, and
so forth are set for each CNC machine in the log data output file setting. For an
explanation of log data output file setting for each CNC machine, see Section
5.1.3, "Setting Log Data Output File Data for Each CNC Machine."
Procedure

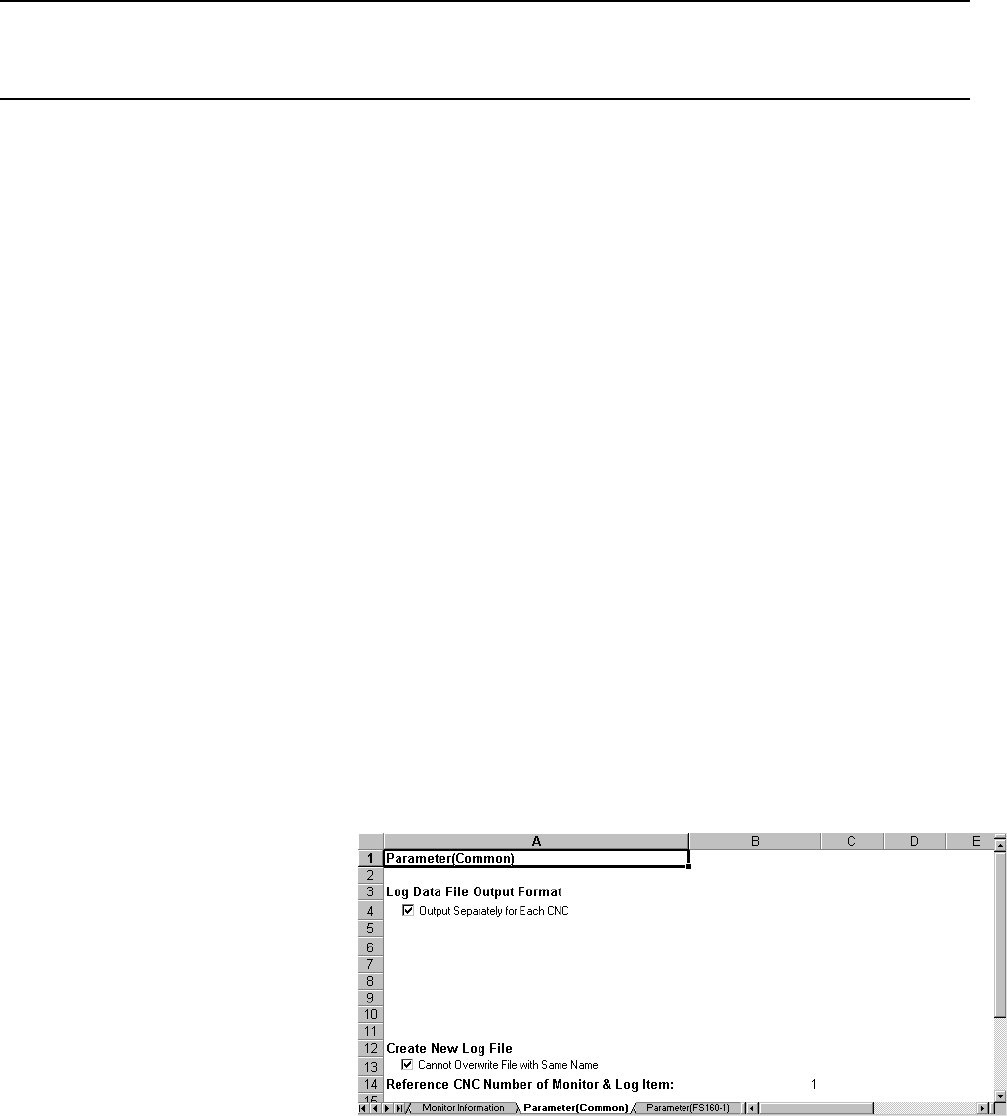

1. Select the [Parameter(Common)] worksheet.
2. Set the parameters, "Log Data File Output Format" and "Create New
Log File."
For details of the setting method, see Explanation, below.
When a parameter is changed, the <Save> and <Cancel> buttons appear.
