OPEN CNC (Machining Status Monitoring Package) Operators manual Page 181

Operators manual
B-63364EN/03 6. MONITORING CNC MACHINES AND OUTPUTTING LOG DATA
- 165 -
6.4.3 Handling Exceptions that Occur during Log Data Output
The method of processing the exception when the following errors occur at the
logging data output is described.
When the Machining Status Monitor Package cannot output the log data to
the log output file.
It is caused by the case such that the system memory runs short when the size
of the logging data output file becomes huge. For this case, processed as
follows.
<1> The logging data output file is saved on the specified folder and then
closed.
<2> The new logging output file is created. For the name of this file, the
number which is attached to the previous file name plus one is
assigned.
<3> The Machining Status Monitor Package continues to output the
logging data to the new file.
When the Machining Status Monitor Package cannot save the logging output
file to the specified folder.
It is caused by the case such that the hard disk capacity runs short. For this
case, processed as follows.
<1> The Machining Status Monitor Package stops the monitoring of all
CNC machines.

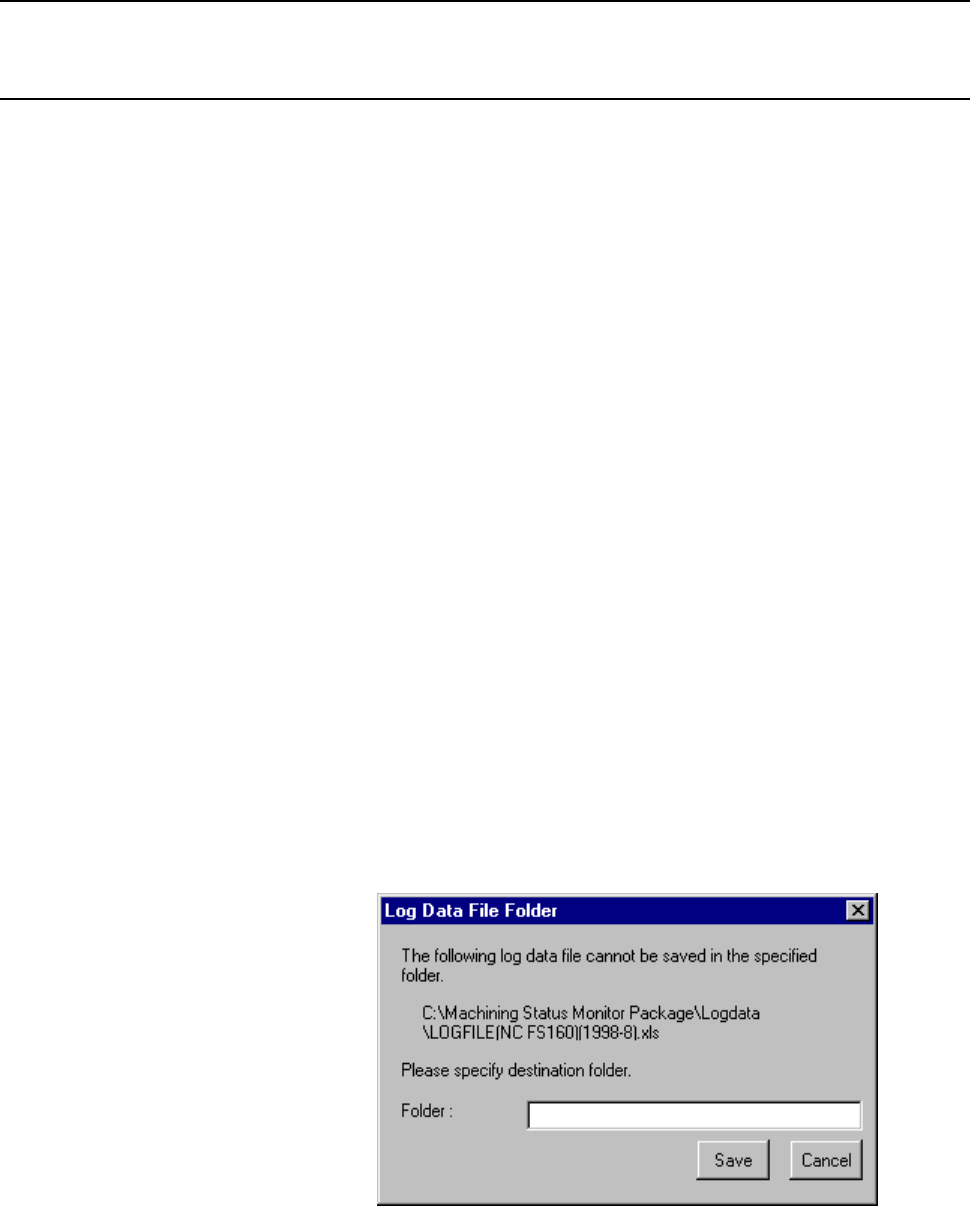

<2> In order to specify the saving destination for the un-saved logging
output file, the following dialog box is displayed.
<3> Specify the destination folder and click the <Save > button.
If you do not save the file, click the <Cancel> button. And contents
of the logging output file is lost.
