B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 107 -

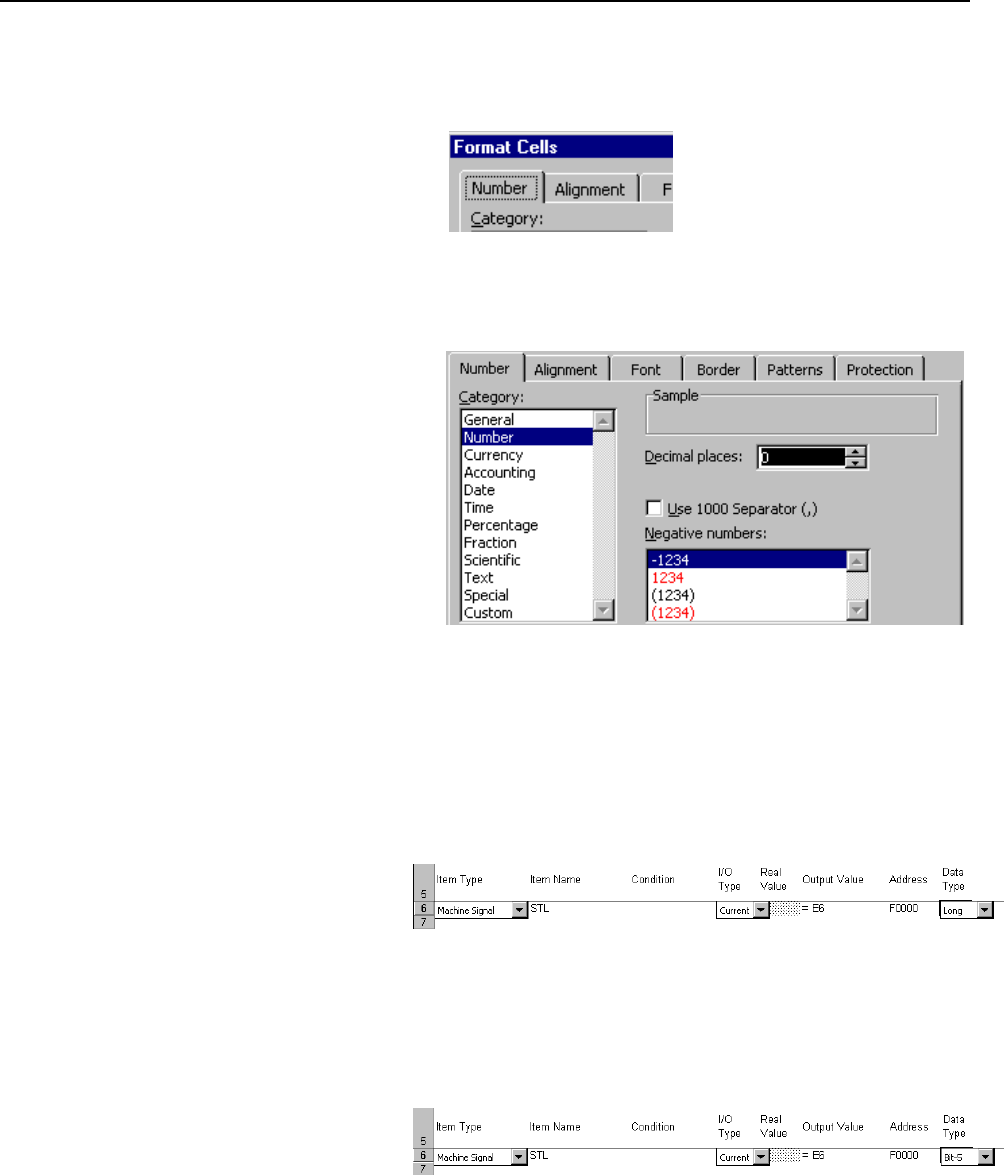

3) Select the "Number" tab.
4) Select "Number" from the category list.
5) Select "-1234" from the negative number display format list.
6) Click the <OK> button.
The display format is now set.
• Address
In cell G6, enter the address type and address number, "F0000," for
the "Cycle Start Lamp signal (STL)."
• Data Type
Set the data type of the data to be monitored. Select "Bit 5" from the
data type list because the "Cycle Start Lamp signal (STL)" is bit 5 of
the machine signal specified in Address.
Data is now set for the monitor item for monitoring the "Cycle Start
Lamp signal (STL)."
To save the settings, click the <Save Combo Box Data> button.
