OPEN CNC (Machining Status Monitoring Package) Operators manual Page 113

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 97 -
Instead, when the value by a factor of 10 over the acquisition value
should be output, set the following calculation formula.
= E6*10
Refer to the manual and help of MS Excel for details of the format
of the calculation formula of MS Excel.
• Display form
The display format of the cell where this "Output value" is output as
the logging data is specified using the formatting function of MS
Excel.
Refer to "5.2.2 Example of Registering and Changing Monitor
Items and Log Output Items" for setting method of the display
format.
Refer to the manual and help of MS Excel for details of the display
format of MS Excel.
(Address)
It is not necessary to set the value.
The processed part name acquired from machining program
information is stored.
When processed part name should be output as the logging data, set
this cell position.
(Data type)
It is not necessary to set the value.
The machining process name acquired from machining program
information is stored.
When machining process name should be output as the logging data,
set this cell position.

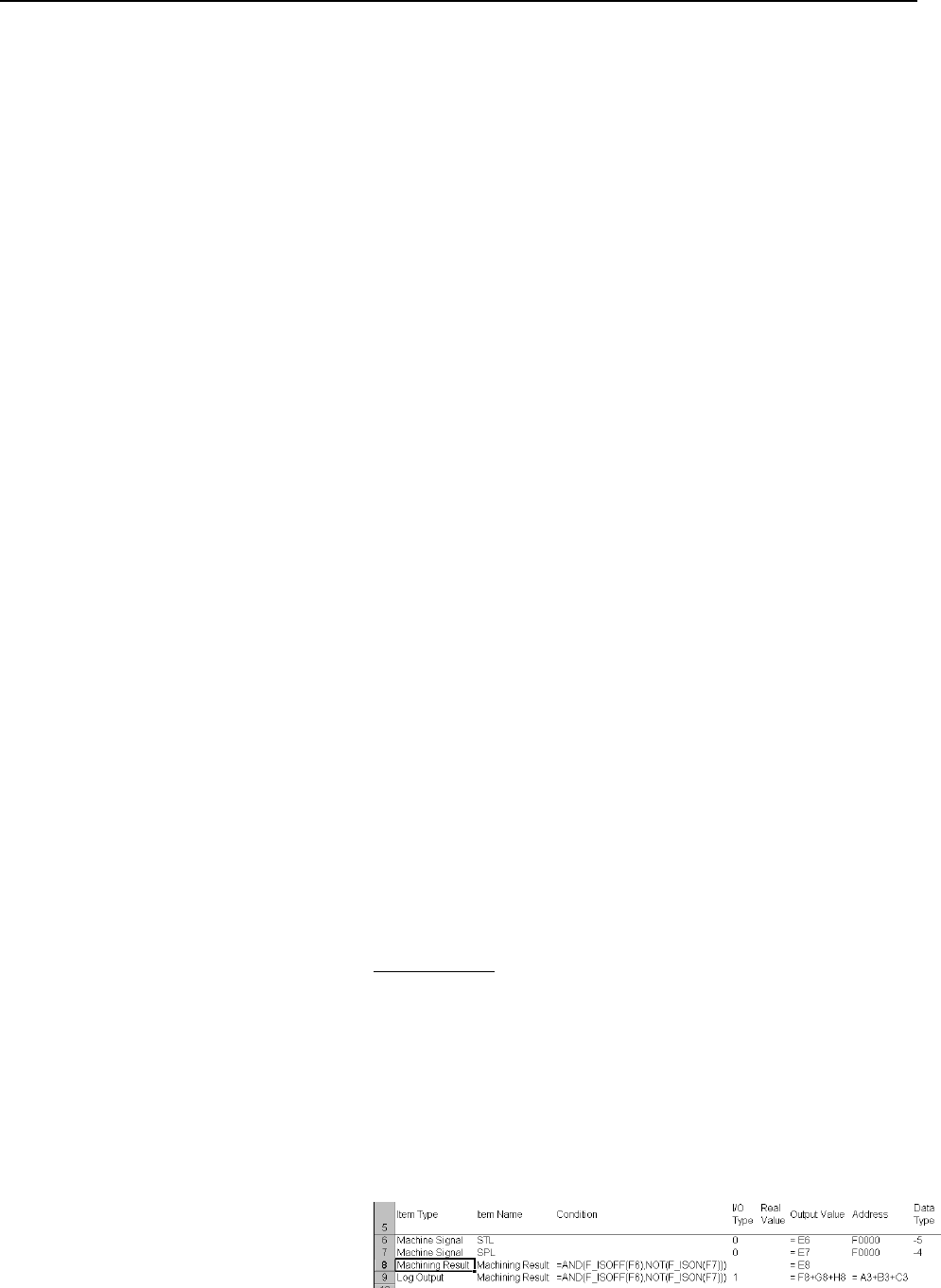

Setting example
The setting example for outputting the machining results(the
processed part name, the machining process name, and the number of
processed parts) as the logging data when the program is terminated is
illustrated below.
Refer to the figure of "Monitor items and log output items to be
registered" of "5.2.2 Example of Registering and Changing Monitor
Items and Log Output Items" for the end condition of the program.
