5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 132 -
• Operation

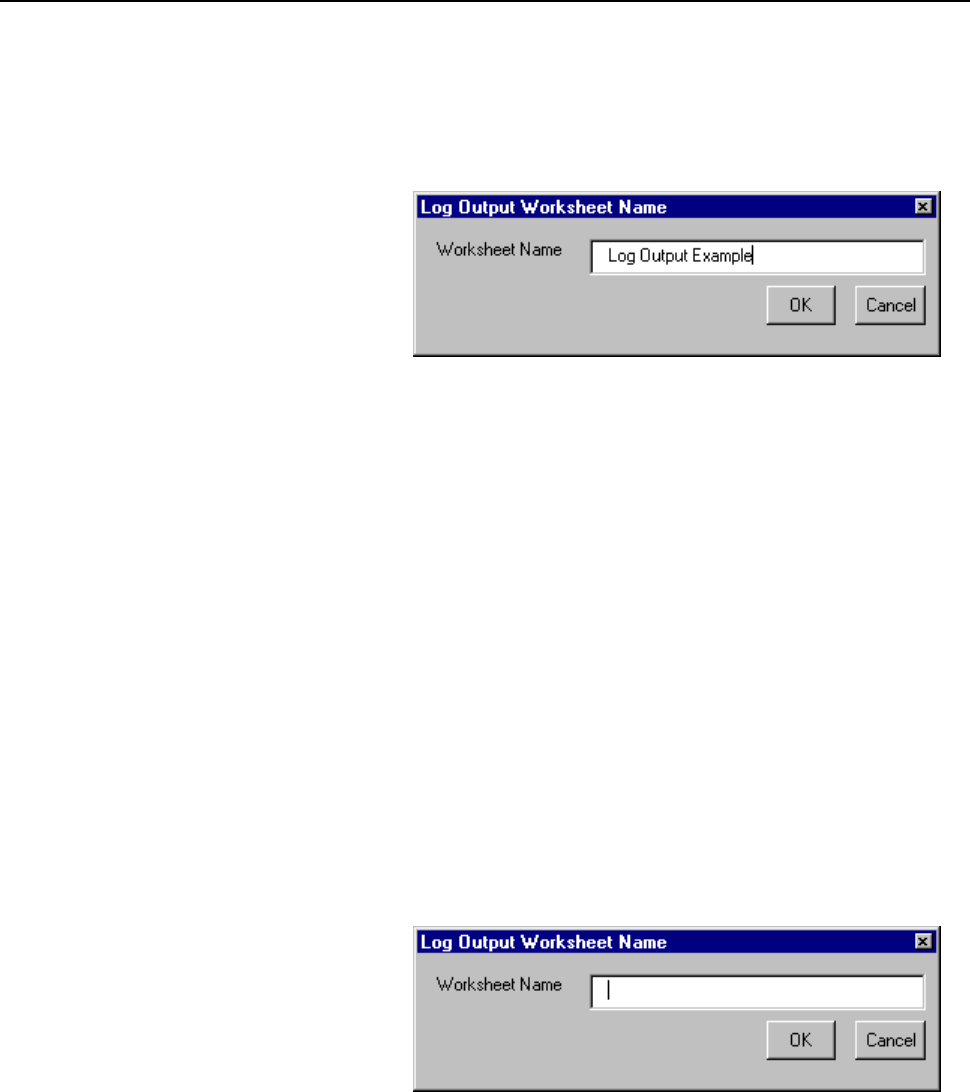

Click the <Worksheet Name Modify> button. The [Log Output
Worksheet Name] screen, shown below, appears.
Change the worksheet name.
The worksheet name can consist of up to 31 characters. The following
characters cannot be used.
/ : \ [ ] *
Click the <OK> button.
3) Addition of a new worksheet
• Description
Allows the addition of a new log output worksheet.
The addition of a worksheet due to the addition of a worksheet is
carried out upon exiting from the monitor item and log output item
registration sheet.
• Operation
Click the <Add New Worksheet> button. The [Log Output
Worksheet Name] screen appears.
Specify the worksheet name.
The worksheet name can consist of up to 31 characters. The following
characters cannot be used.
/ : \ [ ] *
Click the <OK> button.
