5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 90 -
It is necessary to set the same number for the output position
specified at "Address" with the number of outputs specified at
"Output value"
Refer to the manual and help of MS Excel for details of the format
of the calculation formula of MS Excel.

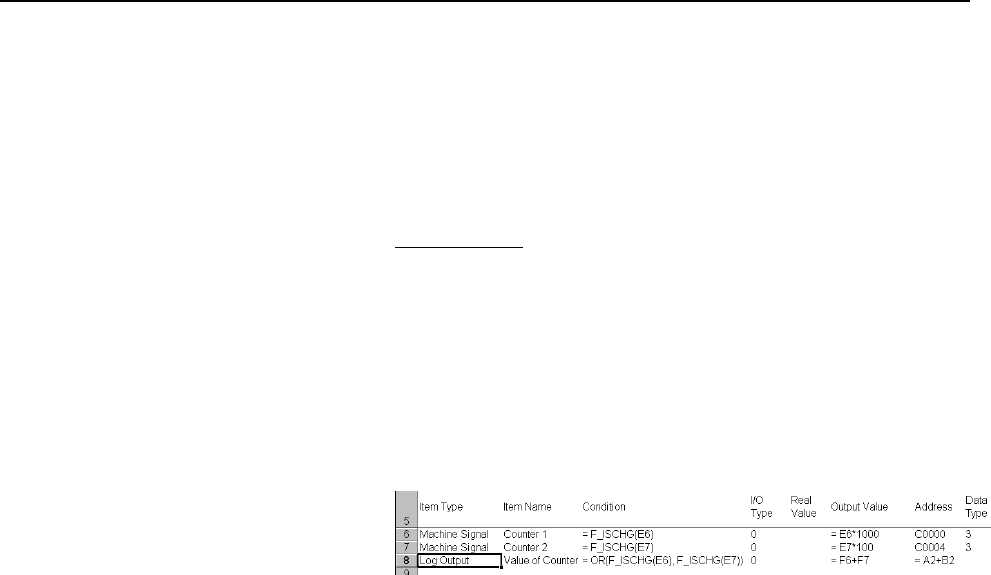

Setting example
The setting example for outputting the logging data which is acquired
from the monitoring item is illustrated below. Refer to "(1) Machine
Signal" for setting the monitoring item.
Output worksheet name : Value of counter
Cell position for output : Counter1 = A2, Counter 2= B2
Condition : When either value of counters changes
I/O type : Overwrite output
(3) Date, Time
• Date
The current date is acquired from the personal computer.
• Time
The current time is acquired from the personal computer.
Item name
Set the name by which the character of this monitoring item is shown.
The item name becomes the key word for referring to the output item
on the registration auxiliary screen of the logging output item.
Condition
Set the condition formula to acquire the monitoring data of this
monitoring item from the CNC machine. When the condition is set,
the data acquisition is executed if the condition formula is satisfied
(=TRUE).
When the condition is not set, the data acquisition is executed at every
sampling interval of that CNC machine.
The format of the condition formula follows to the grammar of MS
Excel. For instance, when the monitor data is acquired only when the
value of cell F6 is larger than 0, set the following condition formula.
= F6>0
