OPEN CNC (Machining Status Monitoring Package) Operators manual Page 34

Operators manual
2. BASIC KNOWLEDGE B-63364EN/03
- 18 -
2.2 SCREEN CONFIGURATION AND TERMS

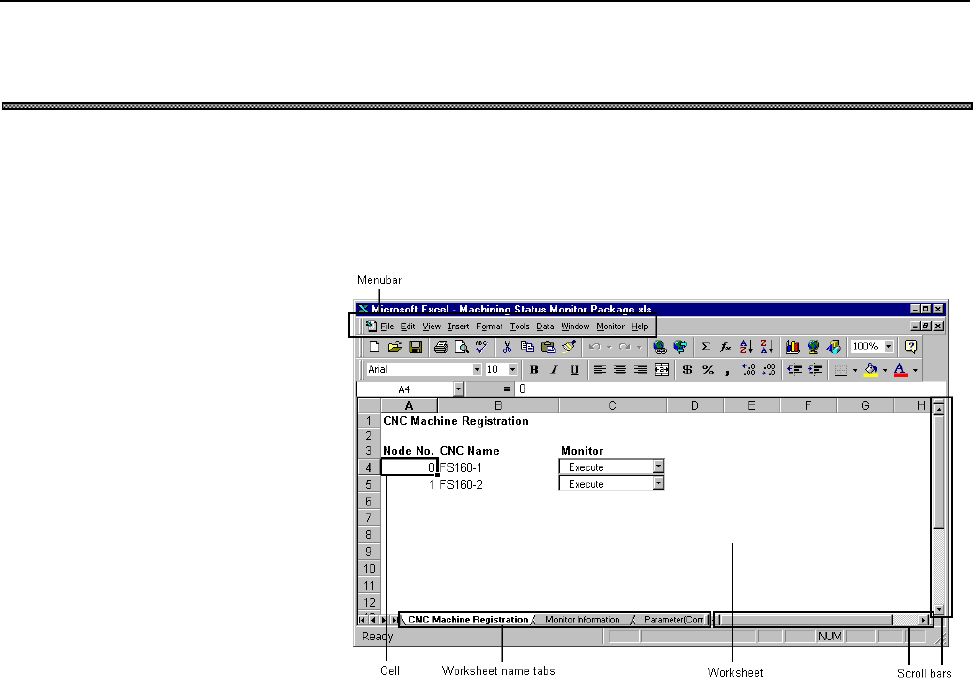

This section explains the screen configuration and the names of the items
displayed by the Machining Status Monitor Package. The Machining Status
Monitor Package runs under MS Excel, as shown below.
Explanation
Menu bar
Used to initiate commands such as [File] and [Edit], and so on.
Worksheet
Worksheets are used for inputting and editing data with MS Excel. They
are basically groups of cells configured in a row/column arrangement. For
details of cells, see the description below. The operation of the Machining
Status Monitor Package is based on worksheets.
Worksheet name tabs
Worksheet name tabs are displayed at the bottom of the worksheet. The
name of the displayed worksheet is indicated. To select a worksheet to be
manipulated, click the worksheet name tab. For an explanation of how to
select a worksheet, see Section 2.3.1, "Selecting a worksheet."
Previous page
Next page
