OPEN CNC (Machining Status Monitoring Package) Operators manual Page 50

Operators manual
3. REGISTERING CNC MACHINES TO BE MONITORED AND DELETING REGISTERED CNC MACHINES B-63364EN/03
- 34 -
A CNC machine deleted in the above state cannot be reregistered with the
Machining Status Monitor Package. To reregister such a CNC machine,
terminate the Machining Status Monitor Package, then change the setting of
the driver of the High Speed Serial Bus. For an explanation of CNC machine
registration, see Section 3.1.2, "Registering CNC Machines to Be
Monitored."

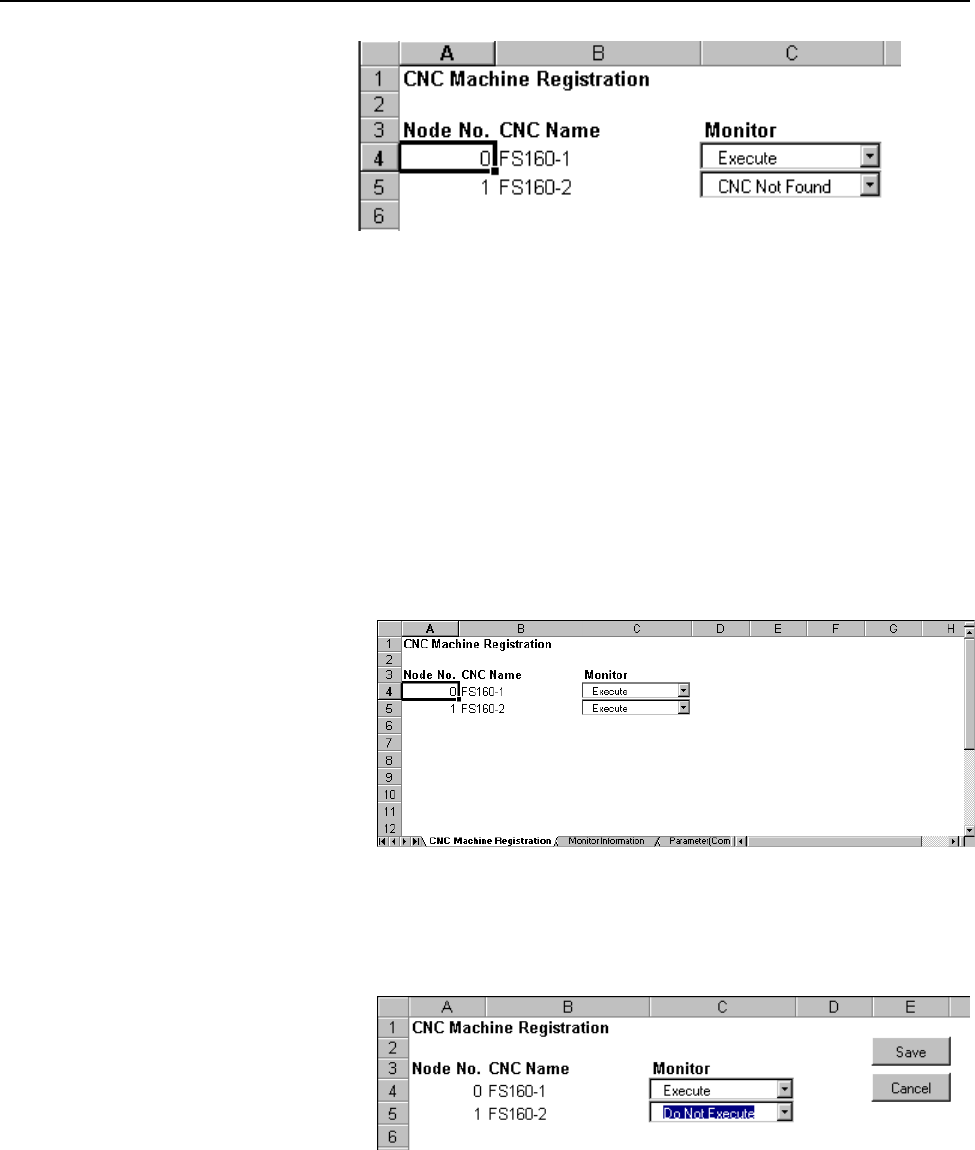

Procedure
Deleting a CNC machine to be monitored
1. Select the [CNC Machine Registration] worksheet.
2. Change the setting of the monitor combo box for the CNC machine to
be deleted from "Execute" to "Do Not Execute."
The <Save> and <Cancel> buttons appear.
3. Click the <Save> button.
The confirmation message below appears.
