OPEN CNC (Machining Status Monitoring Package) Operators manual Page 62

Operators manual
3. REGISTERING CNC MACHINES TO BE MONITORED AND DELETING REGISTERED CNC MACHINES B-63364EN/03
- 46 -
3.2.4 Registering CNC Machines As the Target to Be Monitored
A CNC machine that has been registered in the Machining Status Monitor
Package and for which "Do Not Execute" is indicated in the monitor combo
box, can be registered in the [Monitor Information] worksheet and recognized
as the target to be monitored.
At the CNC machine registering, if "Execute" was selected at the monitor
combo box, the CNC machine is already registered in the [Monitor
Information] worksheet.
Procedure

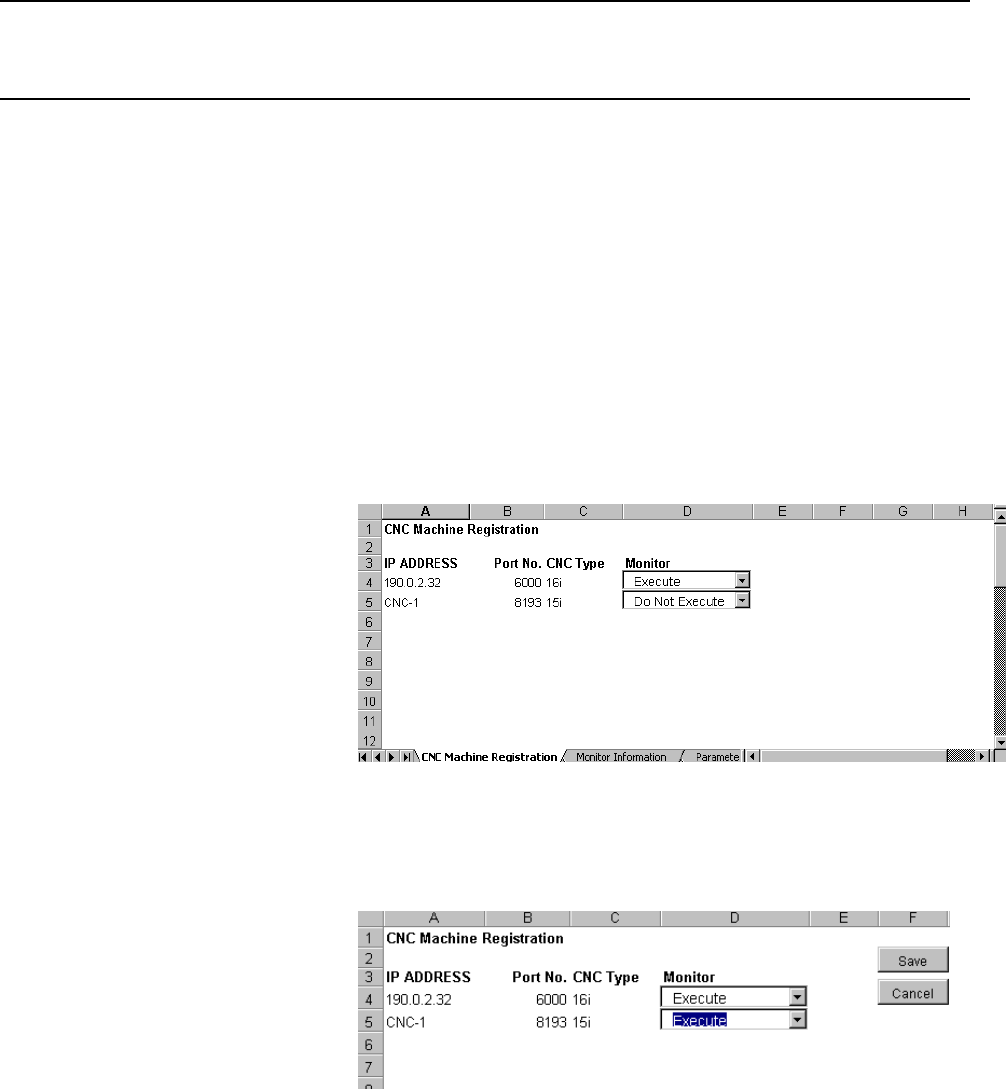

1. Select the [CNC Machine Registration] worksheet.
The [CNC Machine Registration] worksheet appears.
2. Change the setting of the monitor combo box for the CNC machine from
"Do Not Execute" to "Execute".
The <Save> and <Cancel> buttons appear.
3. Click the <Save> button.
The confirmation message below appears.
