OPEN CNC (Machining Status Monitoring Package) Operators manual Page 163

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 147 -

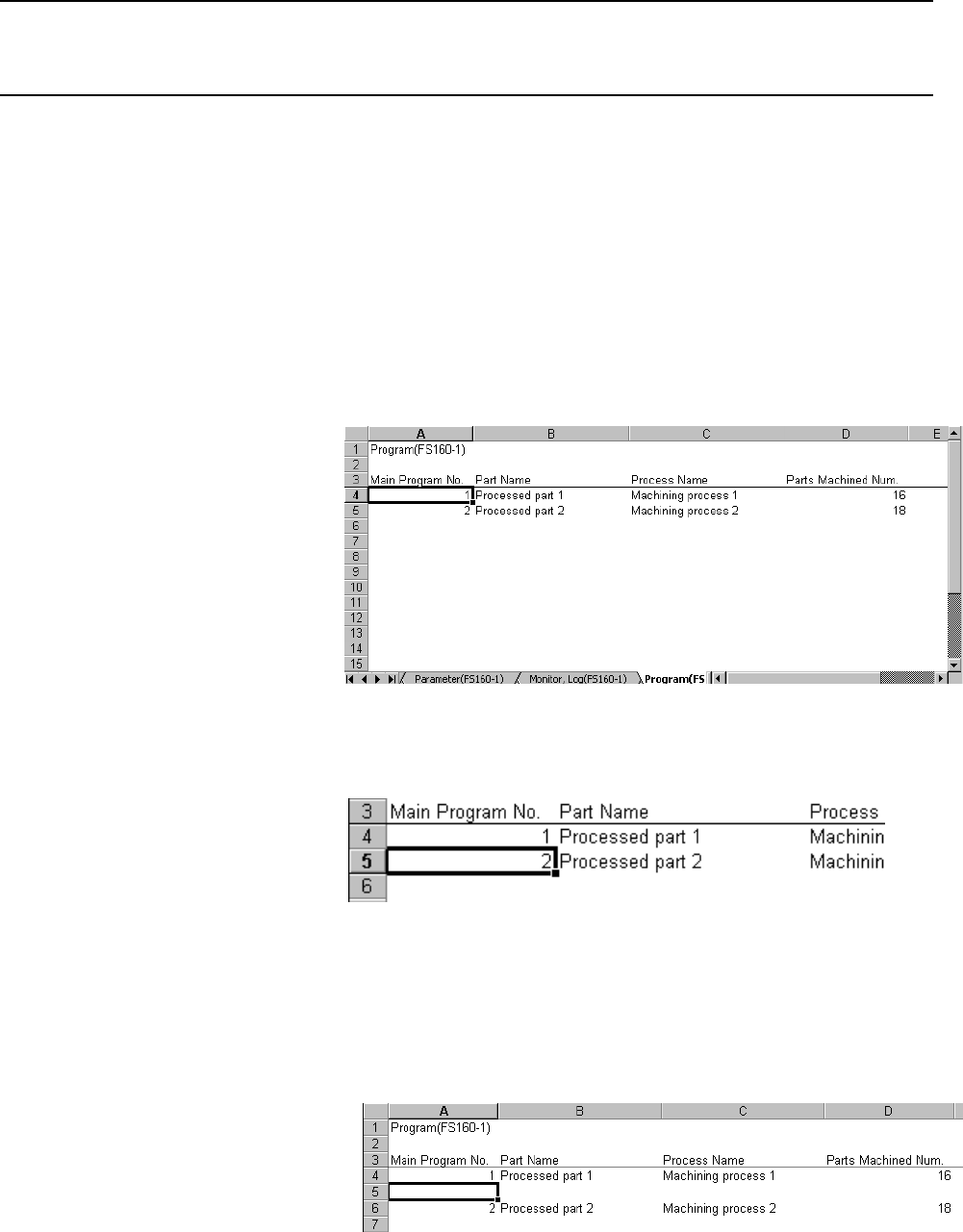

5.3.2 Inserting Rows into Machining Program Information
To insert new machining program information between rows of existing
machining program information, first insert a blank row and then register the
machining program information.
To insert a blank row, use the <Insert> command.
Procedure
1. Select the [Program(FS160-1)] worksheet.
(This worksheet is for registering machining program information for
the CNC machine named "FS160-1.")
2. Select the cell where a row is to be inserted. A cell in any column may be
selected.
3. Choose [Insert], then [Rows].
A blank row is added to the position of the selected cell, so that
machining program information can be registered. For an explanation of
registering machining program information, see Section 5.3,
"REGISTERING MACHINING PROGRAM INFORMATION."
