OPEN CNC (Machining Status Monitoring Package) Operators manual Page 144

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 128 -

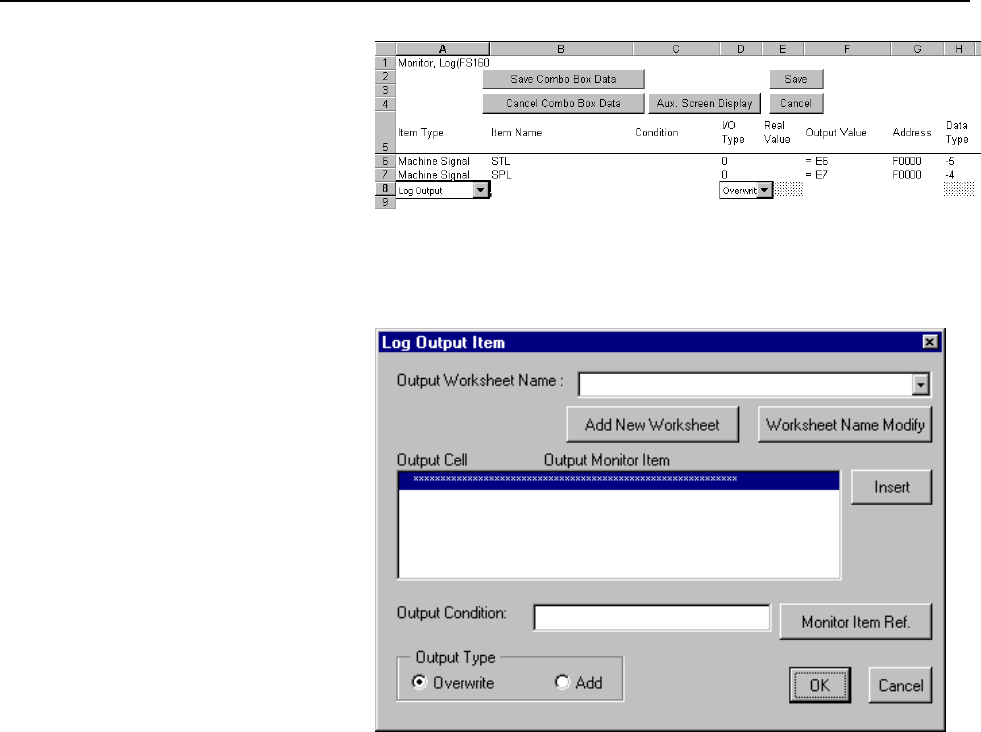

4. Click the <Aux. Screen Display> button.
The [Log Output Item] screen appears.
5. Set the desired output worksheet name, log output item, destination
cell, and so on.
For details of the functions of the [Log Output Item] screen and the
operations performed on the screen, see "Explanation," below.
6. To save the data set on the [Log Output Item] screen, click the <OK>
button. The contents of the [Log Output Item] screen are reflected in
the cells.
To cancel the data set on the [Log Output Item] screen, click the
<Cancel> button.
The [Log Output Item] screen disappears.
