5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 118 -
Click the <OK> button.
This causes the main program number to be output to cell A3 as log
data.
Next, perform the necessary setup to output the start time to cell B3
as log data.
From the output item list, select only the last item
"*****************." (On the list, a selected item (displayed in
reverse video) can be deselected by clicking it again.)
Click the <Insert> button.

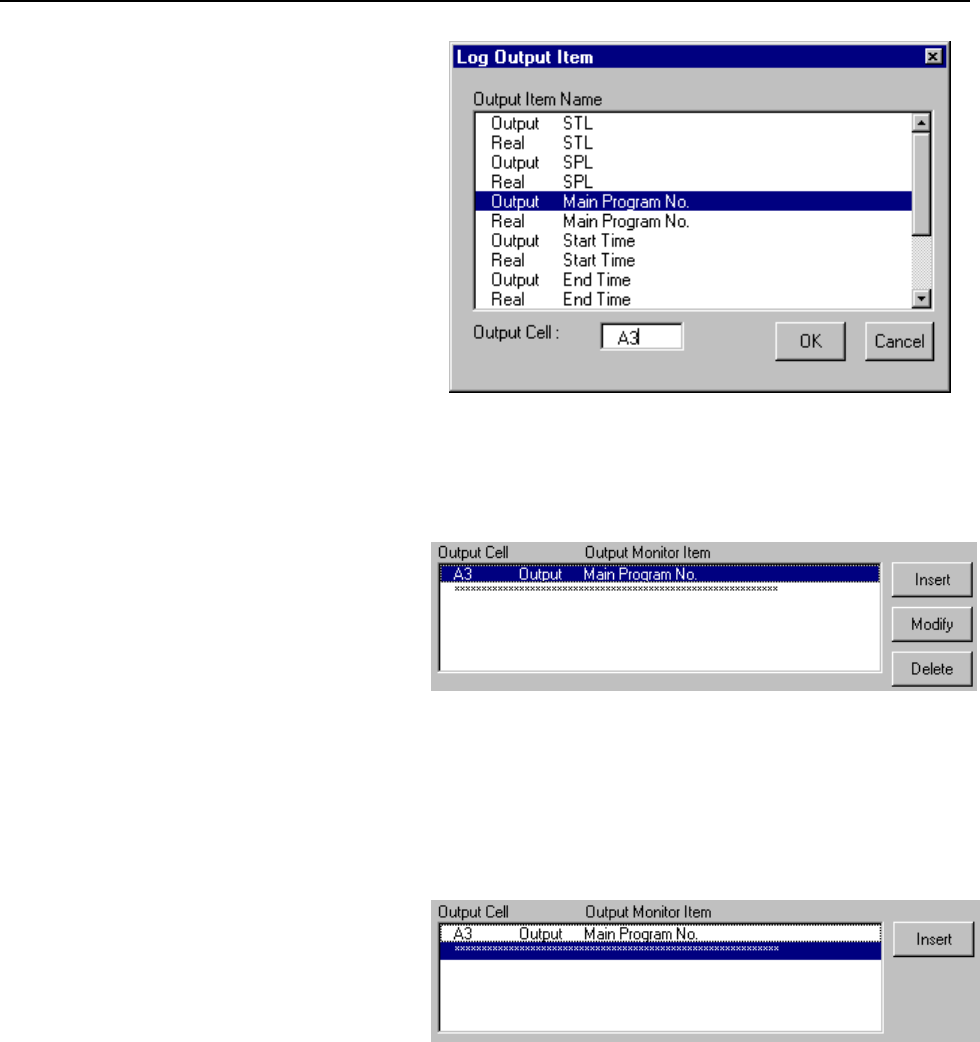

The screen for selecting the monitor items to be output as log data
and their destinations appears.
Select the monitor items to be output as log data and their
destinations.
From the output item name list, select "Output Start Time."
Enter "B3" as the destination cell.
Previous page
Next page
