OPEN CNC (Machining Status Monitoring Package) Operators manual Page 80

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 64 -
3. Click the <Save> button.
The change is applied and the <Save> and <Cancel> buttons disappear.
Explanation
Specification of whether to start the monitor automatically at startup

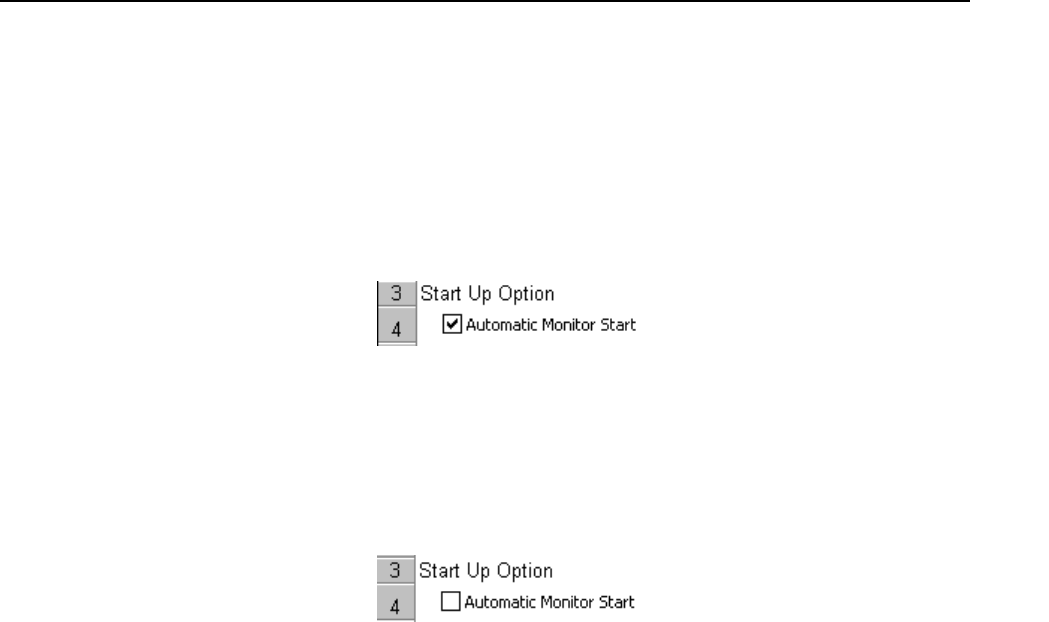

To start the monitor automatically at startup, place a check mark in the
checkbox, as shown below:
From the next time the Machining Status Monitor Package is started, the
monitor for that CNC machine will be started automatically.
If the monitor is not to be started automatically at startup, remove the
check mark from the checkbox, as shown below:
By default, the monitor is not started automatically.
