OPEN CNC (Machining Status Monitoring Package) Operators manual Page 139

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 123 -

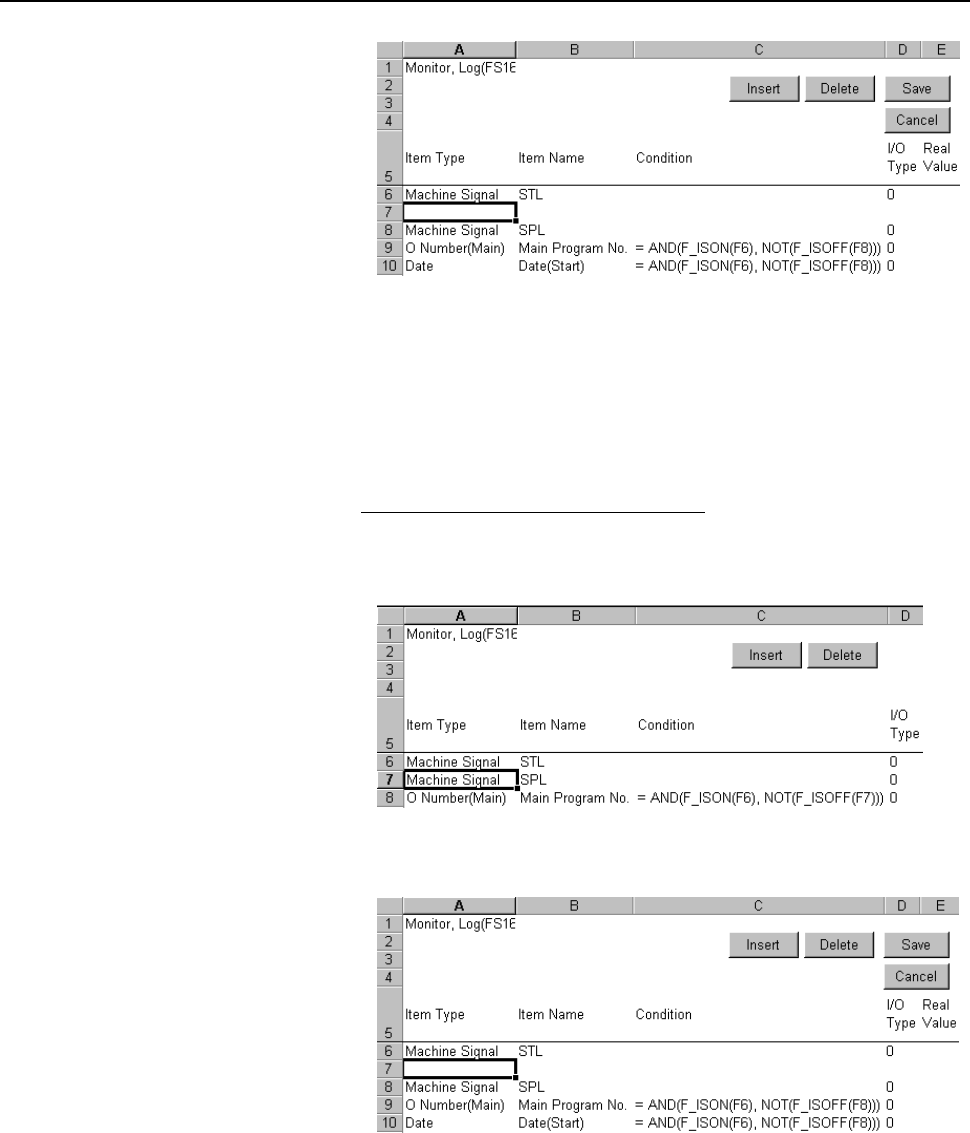

A blank row is added to the position of the selected cell, so that a
monitor item or log output item can be registered. For an explanation
of registering monitor items and log output items, see Section 5.2.2,
"Example of Registering and Changing Monitor Items and Log
Output Items."
To insert a row using the [Insert] command
1. Display the [Monitor, Log(FS160-1)] worksheet. Select the cell
where a row is to be inserted. A cell in any column may be selected.
2. Choose [Insert], then [Rows].
A blank row is added to the position of the selected cell, so that a
monitor item or log output item can be registered.
