2. BASIC KNOWLEDGE B-63364EN/03
- 22 -
2.3.3 Scrolling a Worksheet

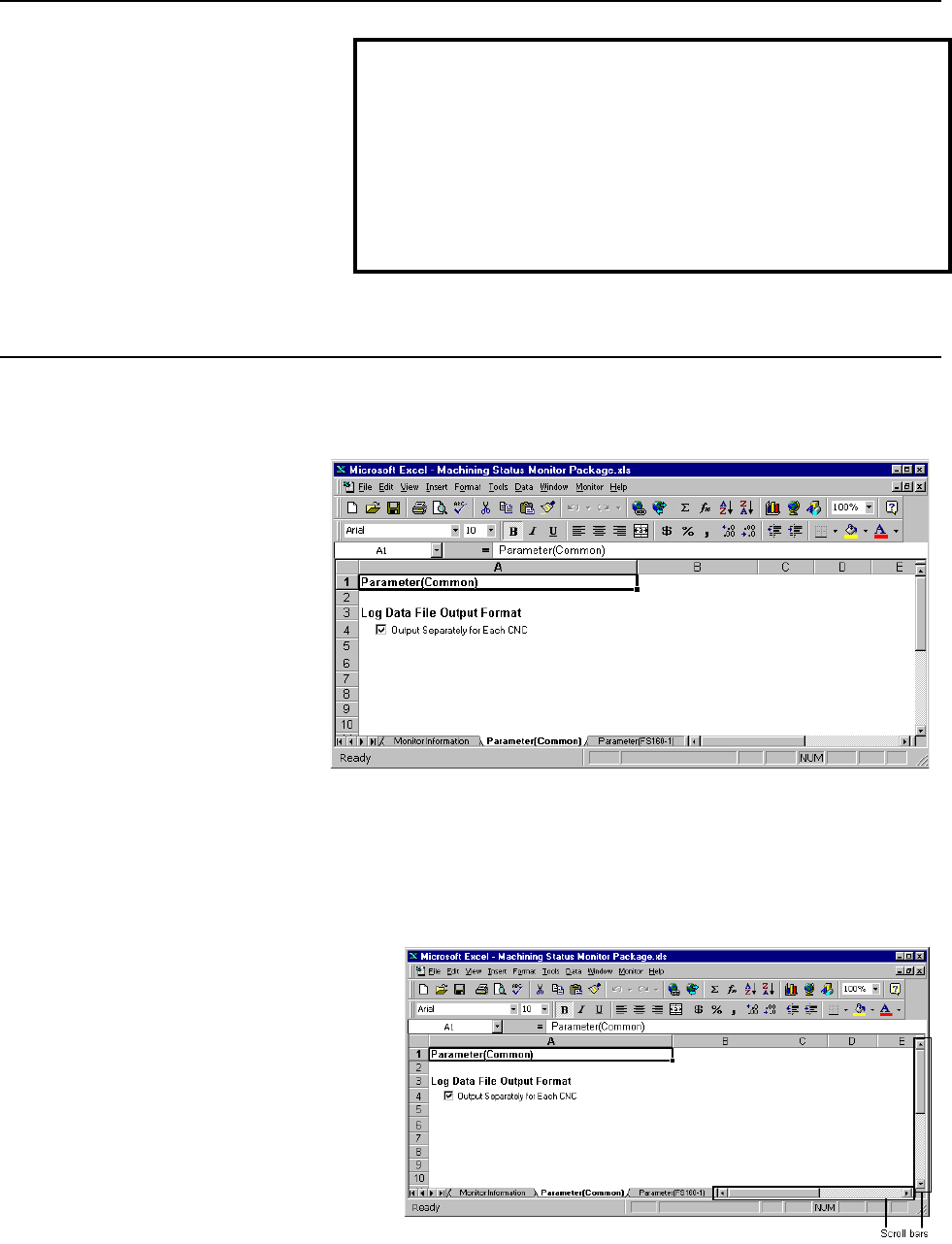

If a desired cell is not displayed, it can be displayed by scrolling the worksheet.
In the following explanation, the worksheet is assumed to have been selected.
Procedure
1. Use the vertical scroll bar (located on the right side of the screen) or
the horizontal scroll bar (in the lower right part of the screen) to
display a desired cell.
NOTE
Until the [Enter] key is pressed in step 2, MS Excel awaits the input to
the cell. If CNC machine monitoring and log data output are
performed in parallel with cell input, all the CNC machine monitoring
and log data output operations are halted while MS Excel is in this wait
state. Therefore, do not leave MS Excel in the cell input wait state for
an extended period.
