OPEN CNC (Machining Status Monitoring Package) Operators manual Page 138

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 122 -

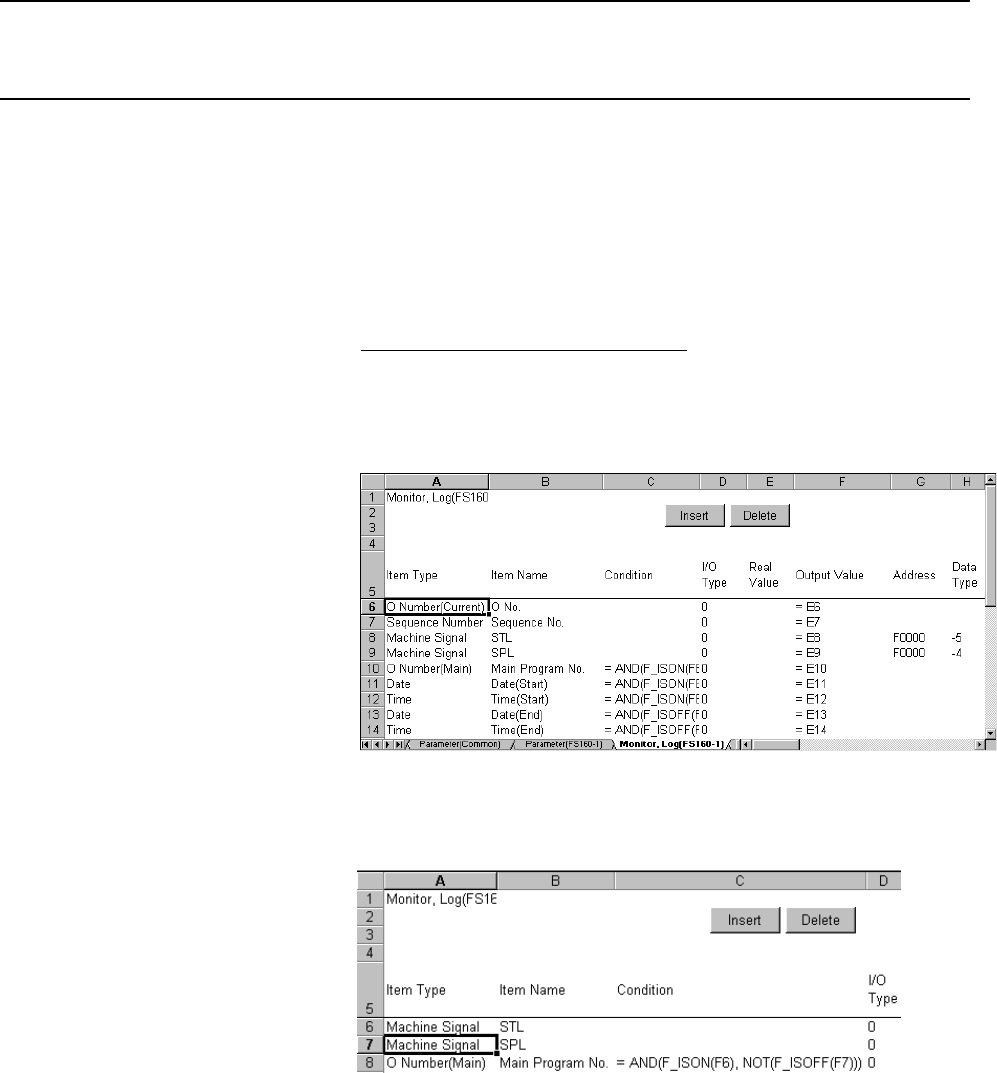

5.2.3 Inserting Rows into Monitor Items and Log Output Items
To add a new item to an existing monitor or log output item, first insert a blank
row and then register the item.
To insert a blank row, use the <Insert> button on the worksheet or the [Insert]
command.
Procedure
To insert a row using the <Insert> button
1. Select the [Monitor, Log(FS160-1)] worksheet.
(This worksheet is for registering monitor items and log output items
for the CNC machine named "FS160-1.")
2. Select the cell where a row is to be inserted. A cell in any column may
be selected.
3. Click the <Insert> button.
