OPEN CNC (Machining Status Monitoring Package) Operators manual Page 132

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 116 -
As shown above, the main program number, start time, end time,
execution time, processed part name, process name, number of
processed parts are output in columns. This additional output starts at
row 3.

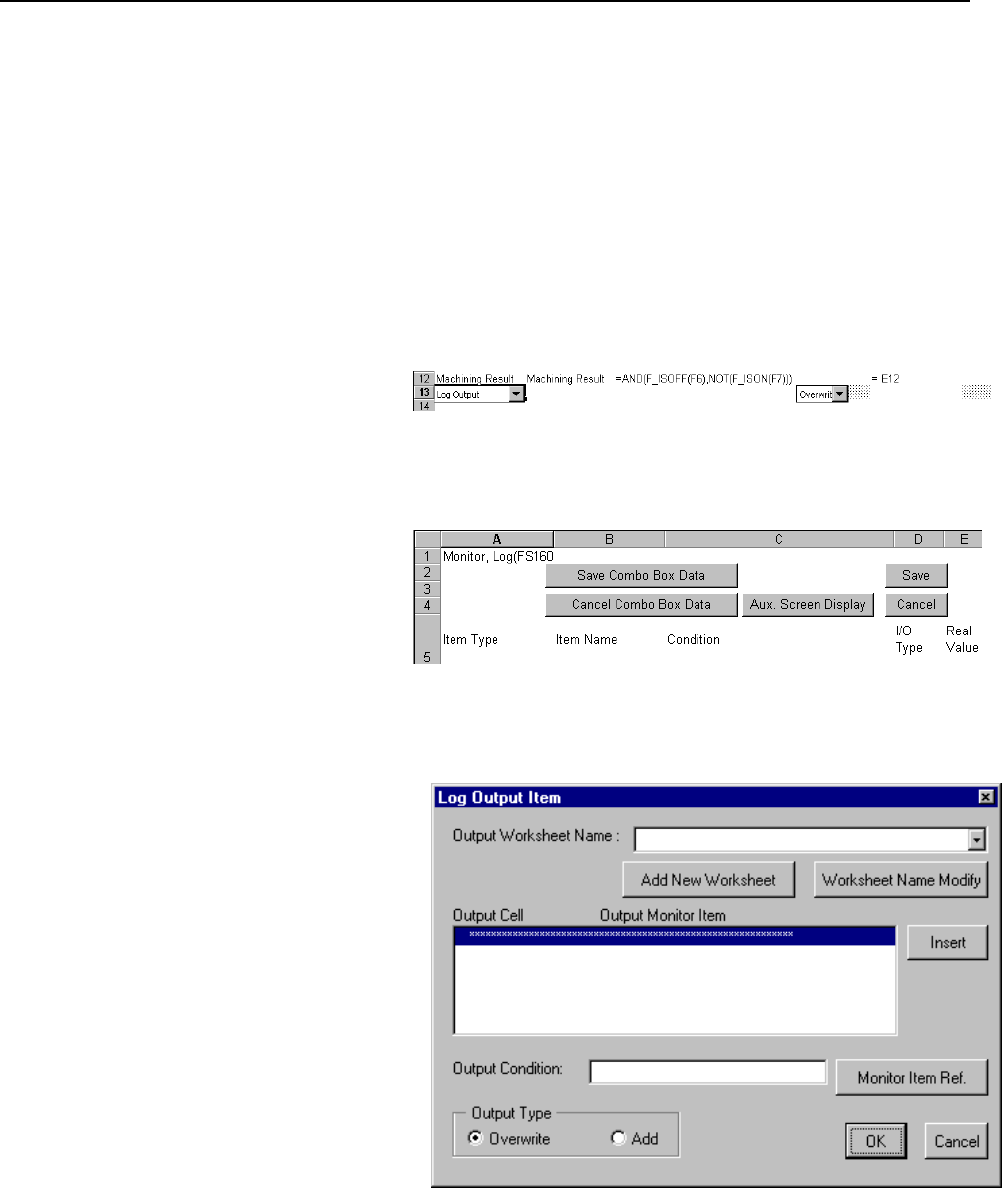

Double-click the area of cell A13.
The lists assisting in registration appear on row 13.
• Item Type
Select "Log Output."
When item type "Log Output" is selected, the <Aux. Screen Display>
button appears.
1) Click the <Aux. Screen Display> button.
The following screen appears.
2) Set the name of the worksheet to which log data is to be output.
Click the <Add New Worksheet> button.
The following screen appears.
