OPEN CNC (Machining Status Monitoring Package) Operators manual Page 172

Operators manual
6. MONITORING CNC MACHINES AND OUTPUTTING LOG DATA B-63364EN/03
- 156 -
combo box, changes to "Executing."
If an error other than power-off occurs in the CNC machine when an
attempt is made to start monitoring, monitoring is not started.
If an item in the monitor combo box is changed, then another worksheet is

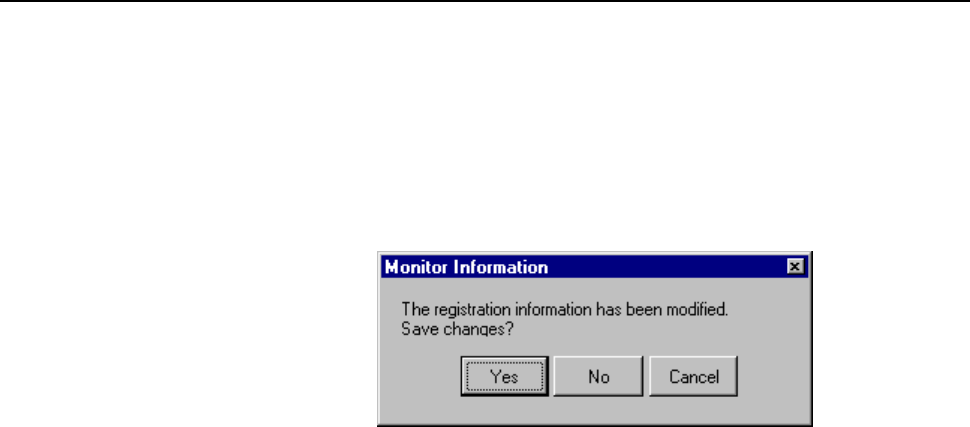

chosen without clicking the <Apply> button, the following message appears:
Click the <Yes> button, to execute the change.
Click the <No> button, to abandon the change.
Click the <Cancel> button, to return to the [Monitor Information] worksheet.
