B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 111 -
The data in the assistance lists is reflected in the cells, and the monitor
item for monitoring the main program number is registered.
5. Using the same steps, register the monitor item for monitoring the start
time of the main program on row 9 of the worksheet.
The details of the start time to be monitored are:
Item type : Time
Monitor item name : "Start Time"
Monitoring condition : Start of the program
Data acquisition type : Acquisition of the current value
The monitor condition is the same as that for the monitor item for the
main program number. For an explanation, therefore, see the section
on registering the monitor item for the main program number.

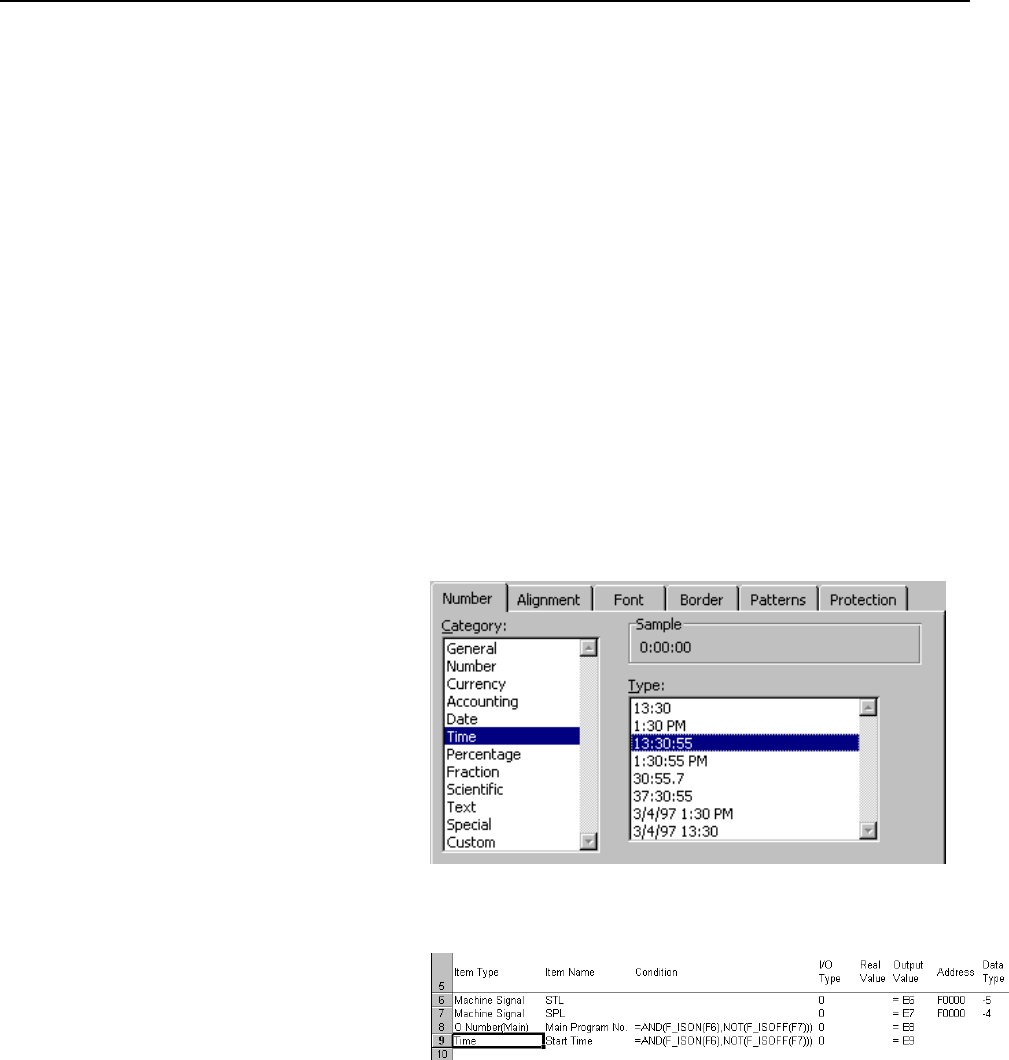

For the output value display format, choose the [Format] command
from MS Excel, select "Time" from the category list, and select the
type shown in the figure below.
The figure below shows the monitor item registered for the start time.
6. Using the same steps as those used to register the monitor item for the
start time, register the monitor item for monitoring the end time of the
main program on row 10 of the worksheet.
The details of the end time to be monitored are:
Item type : Time
Monitor item name : "End Time"
Monitoring condition : End of the program
Data acquisition type : Acquisition of the current value
