OPEN CNC (Machining Status Monitoring Package) Operators manual Page 89

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 73 -
Explanation
Specification of the error information output worksheet name
Specify the name of the worksheet to which the error occurrence
information generated while the CNC machine is being monitored is to be
output.
If an error occurs, error occurrence information is output to the worksheet
in the log data output file that has the worksheet name specified here.
The worksheet name can consist of up to 31 characters. The following
characters cannot be used.
/ : \ [ ] *
The default worksheet name is "Error Information."
If a new error information output worksheet name is specified, the
following error information output worksheet is created automatically. On
the automatically created error information output worksheet, item headers
are set one row above that specified in "Output Top Cell:" of error
information output, described later.
An error information output worksheet that is no longer referenced by any
CNC machine as a result of changing the error information output
worksheet name is automatically deleted from the Machine Status Monitor
Package.

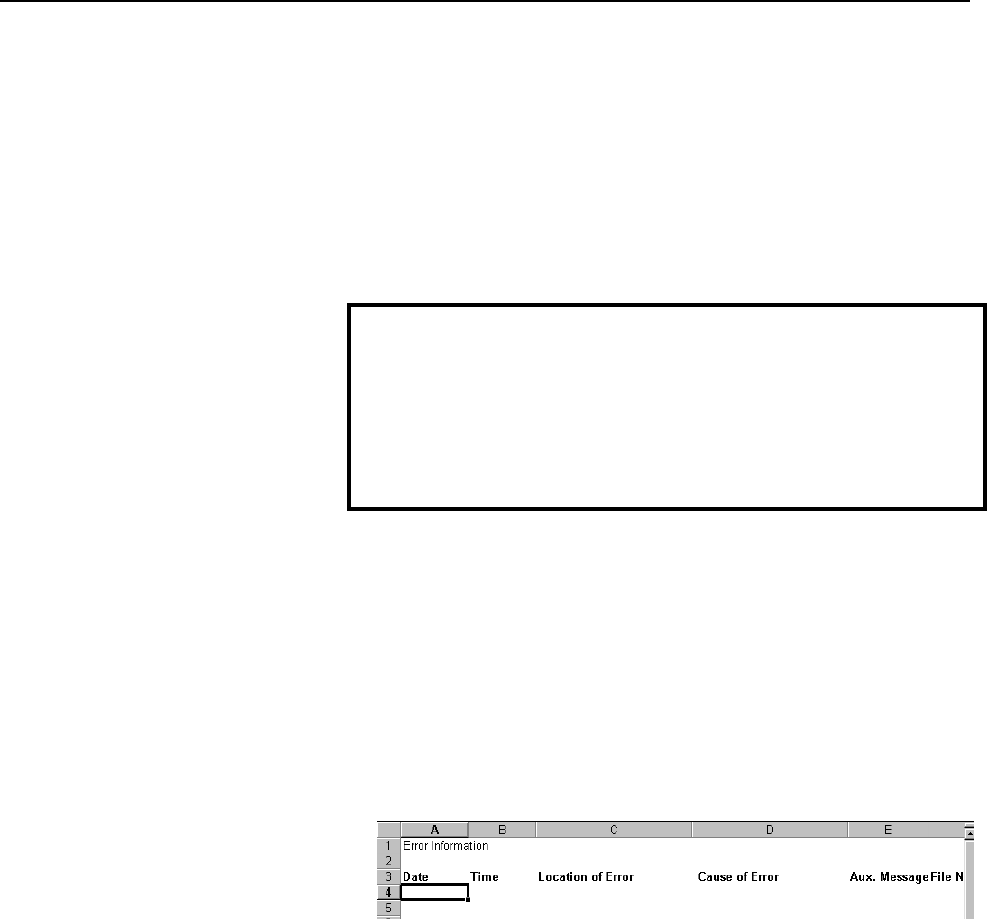

Specification of the top cell of the error information output
Specify the position of the top cell on the error information output sheet to
which the first error information is to be output. For example, if the first
error information is to be output to column 1 on row 4 of the worksheet, as
shown below, specify "A4."
The subsequent error occurrence information is added to the rows of the
error information output sheet.
NOTE
If error occurrence information cannot be output to the error information
output worksheet, it is output to the error information output worksheet of
the Machining Status Monitor Package.
For an explanation of the output of error occurrence information, see
Section 6.4.2, "Outputting Error Occurrence Information."
