B-63364EN/03 6. MONITORING CNC MACHINES AND OUTPUTTING LOG DATA
- 163 -
6.4.2 Outputting Error Occurrence Information
If an error such as monitor data not to be obtained from a CNC machine occurs
during the monitoring of CNC machines, error occurrence information is
output to a worksheet. The user can set the name of the worksheet to which
error occurrence information is to be output and the position of the first error
information output cell using parameters set for each CNC machine.
For an explanation of how to set the name of a worksheet to which error
occurrence information is to be output, and the position of the first error
information output cell, see Section 5.1.4, "Setting the Destination of Error
Occurrence Information."

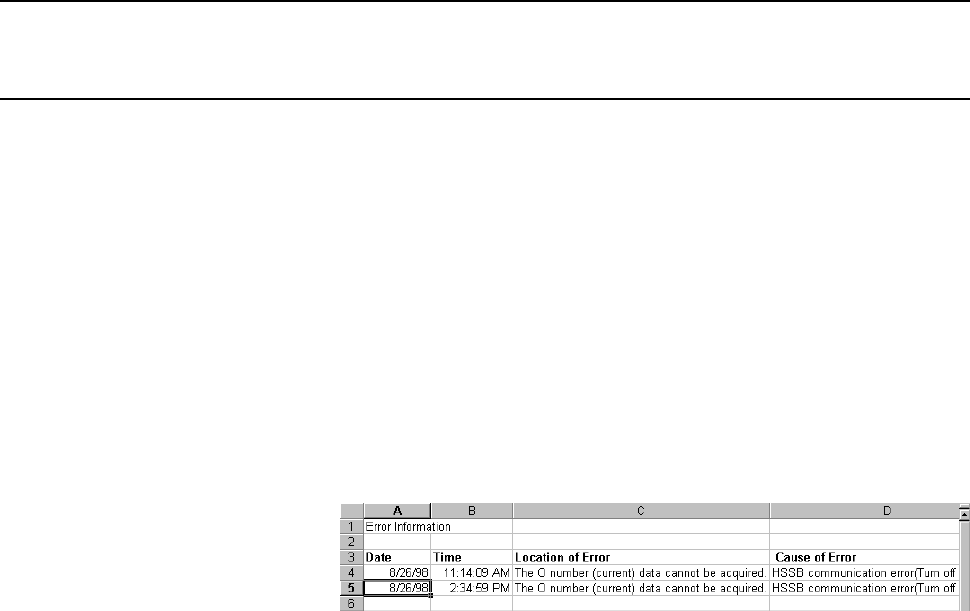

The output format of the error occurrence information is as shown below:
As shown above, if an error occurs, the error information is output to the row
immediately below the last error information row.
The following items are output in the error occurrence information. Some
items may not be output, depending on the nature of the error.
• Error occurrence date and time
• Location of error
• Cause of the error
• Auxiliary message
• Names of the file and of the worksheet on which the error occurred
• Numbers of the row and of the column on which the error occurred
• Name of the CNC machine on which the error occurred
