5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 104 -
5.2.2 Example of Registering and Changing Monitor Items and Log
Output Items
The following explains how to register monitor items and log output items.
Monitor items and log output items to be registered
The times at which the "Cycle Start Lamp signal (STL)"and the "Feed Hold
Lamp signal (SPL)" are in the states shown in the figure below are assumed
to be the program start and end times. The following log data is output at the
program end time:
• Main program number of the executed program
• Main program start time
• Main program end time
• Main program execution time
• Name of the part machined by the executed main program
• Name of the process in which the part was machined by the executed
main program
• Number of parts machined by the executed main program

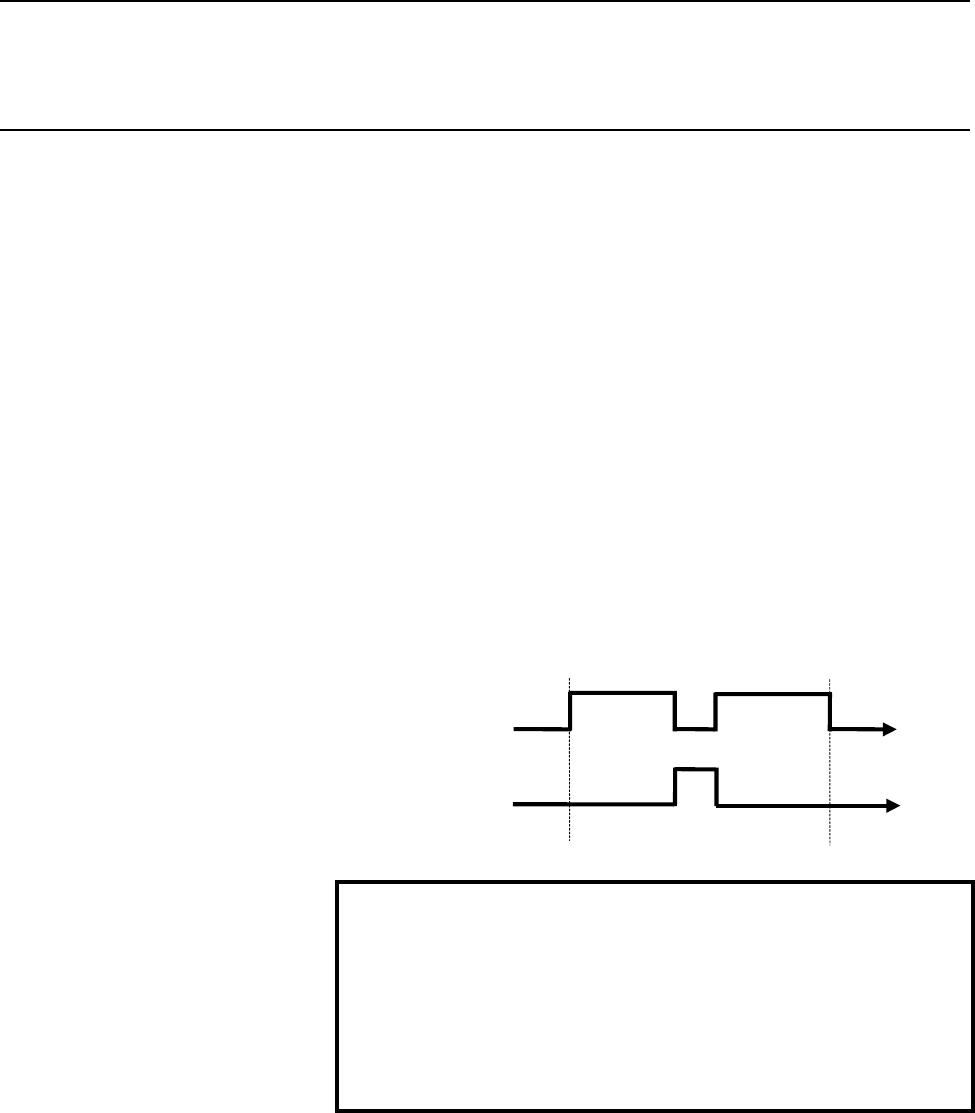

STL signal
SPL signal
Start time End time
Those users who are familiar with monitor items, log output items and their
registration formats can register and change these items by directly changing
the values in the cells.
The following example explains the procedure for registering data more easily
by displaying lists and screens that assist in the registration.
For details of the monitor items and log output items that can be registered, and
their registration formats, see Section 5.2.1, "Monitor Items and Log Output
Items."
NOTE
To correctly output the name of the part machined by the executed main
program, the name of the process, and the number of processed parts,
machining program information must be registered separately.
For an explanation of registering the machining program information,
see Section 5.3, "REGISTERING MACHINING PROGRAM
INFORMATION."
