OPEN CNC (Machining Status Monitoring Package) Operators manual Page 70

Operators manual
4. SETTING THE GENERAL PARAMETERS FOR THE MACHINING STATUS MONITOR PACKAGE B-63364EN/03
- 54 -

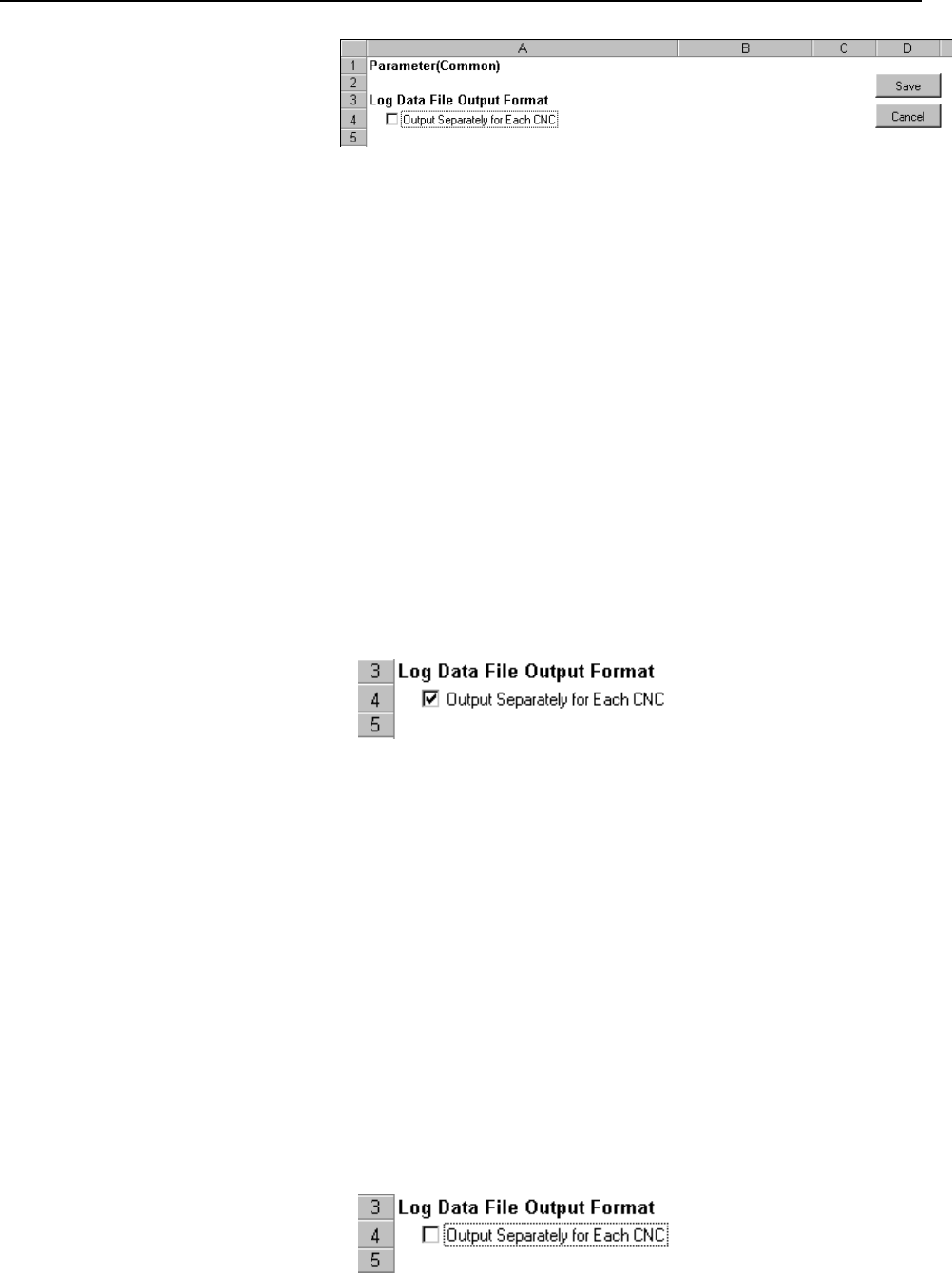

3. Click the <Save> button.
The change is executed, after which the <Save> and <Cancel> buttons
disappear.
Explanation
Specification of a log data output destination for each CNC machine
When multiple CNC machines are monitored simultaneously, and log
data is output, whether to output the log data of each CNC machine to a
separate file can be specified. It is recommended that the log data for a
given CNC machine be output to a file assigned to that machine. Doing so
allows log data output files to be managed for each CNC machine, and
prevents a log data output file from becoming too large to handle. The
default method outputs log data to a file assigned to each CNC machine.
When log data is to be output to a file assigned to each CNC machine,
ensure that a check mark is placed in the check box as shown below.
The following queries, related to parameter setting, become invalid and
disappear:
• Log data file output style used when a transition is made from one
month to the next
• Automatic save interval for a log data output file
• Log data output file name
• Log data output folder name
In this case, set the above parameters in log data output file setting for
each CNC machine. For log data output file setting for each CNC
machine, see Section 5.1.3, " Setting Log Data Output File Data for
Each CNC Machine."
When outputting the log data for all CNC machines to a single file, clear
the check mark from the check box, as shown below.
