OPEN CNC (Machining Status Monitoring Package) Operators manual Page 168

Operators manual
6. MONITORING CNC MACHINES AND OUTPUTTING LOG DATA B-63364EN/03
- 152 -

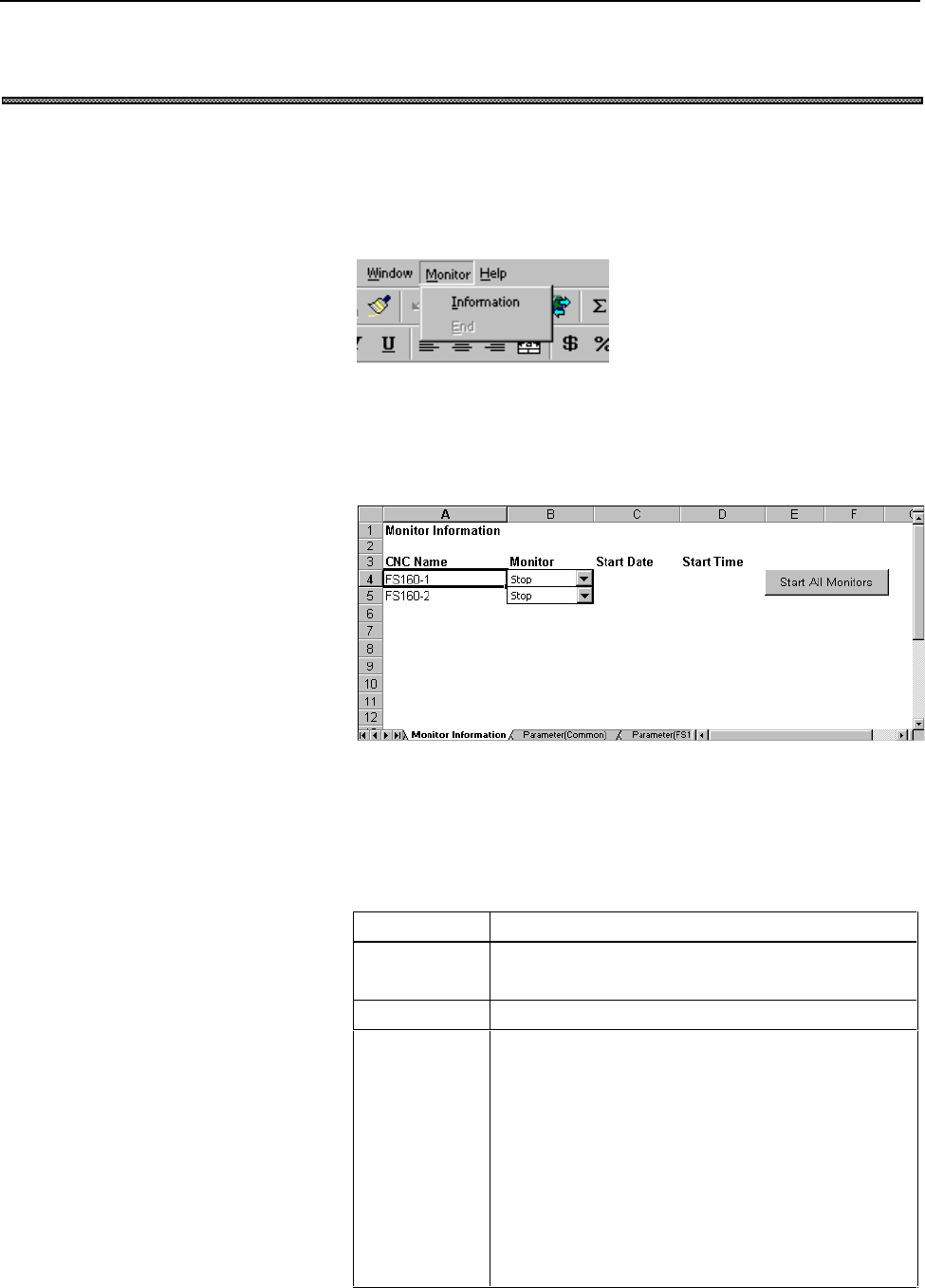

6.1 DISPLAYING THE CNC MACHINE MONITOR STATUS
This section explains how to display the status of CNC machine monitoring.
Procedure
1. Select [Monitor], then the [Information] command.
Alternatively,
Select the [Monitor Information] worksheet.
The [Monitor Information] worksheet appears.
Explanation
The combo box which indicates CNC machine names and their monitor
status appears. The items displayed in the monitor combo box indicate the
monitor states listed in the table below.
Displayed item Monitor state
Executing Monitoring of the corresponding CNC machine is being
performed normally.
Stop Monitoring the corresponding CNC machine is stopped.
Power Off When monitoring of the corresponding CNC machine started,
the power to the CNC machine was off or the power to the
CNC machine was turned off during the execution of
monitoring.
When the power to the CNC machine is turned on, the
displayed item changes to Executing.
"Power Off" is equivalent to an HSSB communication error at
a High Speed Serial Bus driver, or an Ethernet communication
error at Ethernet connection environment.
