OPEN CNC (Machining Status Monitoring Package) Operators manual Page 156

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 140 -
To delete a row using the [Edit] command
1. Display the [Monitor, Log (FS160-1)] worksheet. Select a cell in the
row to be selected. A cell in any column may be selected.
2. Choose [Edit], then [Delete...].
The row containing the selected cell is deleted.
Explanation
Deletion of rows
By selecting cells in multiple rows in step 2. in the above procedure,
multiple rows can be deleted.
If, however, the cells selected in step 2. or 1. in the above procedure
include rows not less than the header rows, these rows cannot be deleted.
If the reference cell positions of monitor items and log output items change
due to the deletion of a row, they are automatically changed to the cell
positions assumed after the deletion of the row.

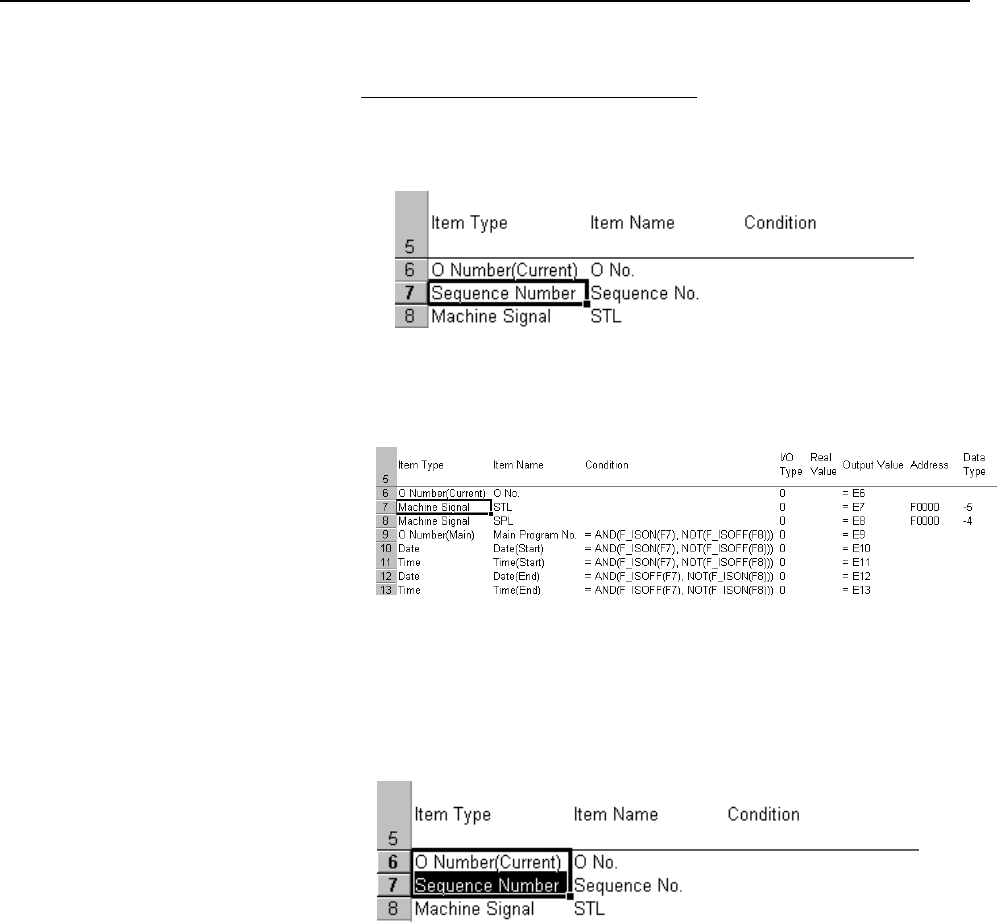

For the above example, the reference cell position of the monitor data for
machine signal STL changes from F8 to F7 and the reference cell position
of the monitor data of machine signal SPL changes from F9 to F8 due to
the deletion of the row. In any conditional expressions and formulas in
other monitor items and log output items that reference cell F8 and F9, the
reference cell positions are automatically changed as shown below:
