5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 148 -
Explanation

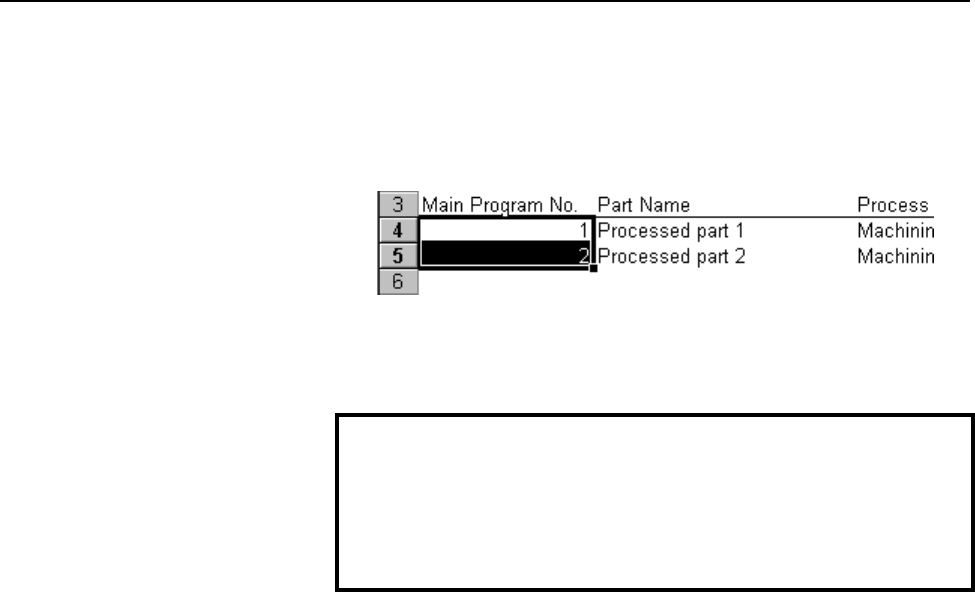

Insertion of blank rows
By selecting cells in multiple rows in step 2. in the above procedure,
multiple blank rows can be inserted.
If, however, the cells selected in step 2. in the above procedure include
rows not less than the header rows, no rows can be inserted.
NOTE
Machining program information in which all the members are blank is
regarded as being the last information. Thus, when a blank row is
added, and left blank, any machining program information registered
after the blank row is ignored.
